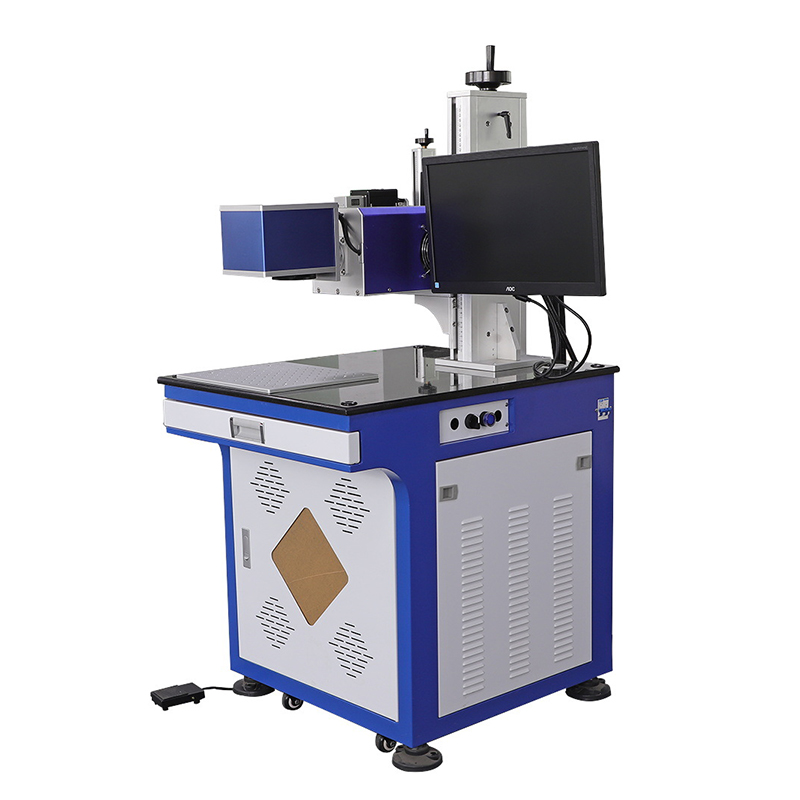

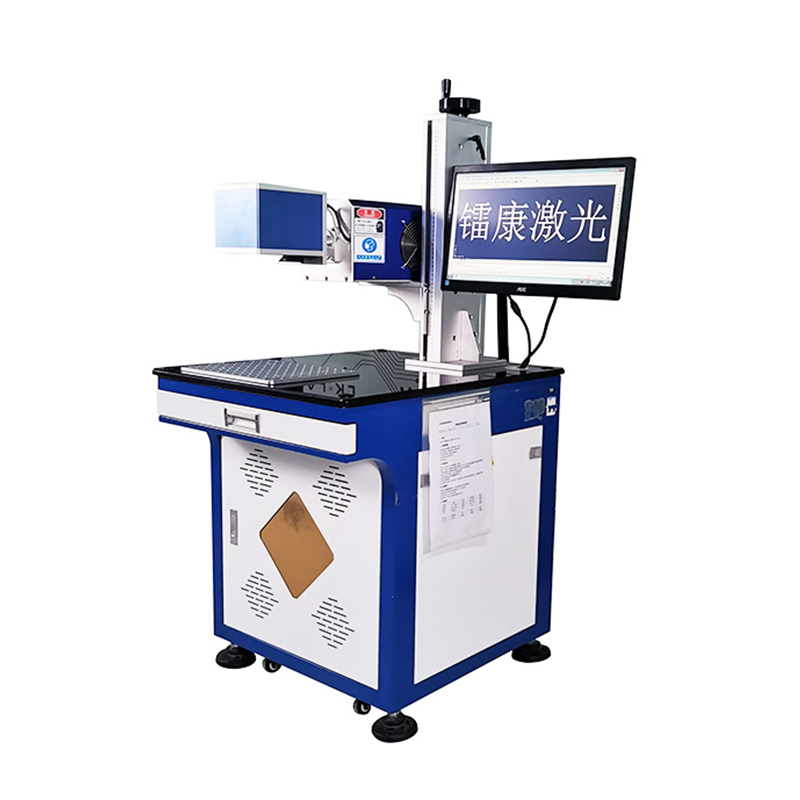

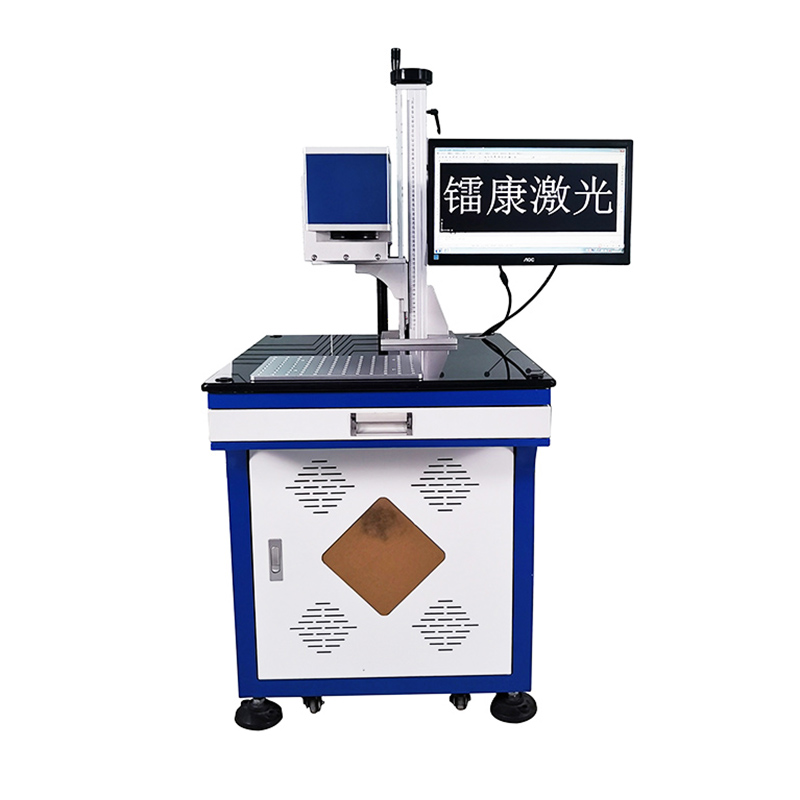

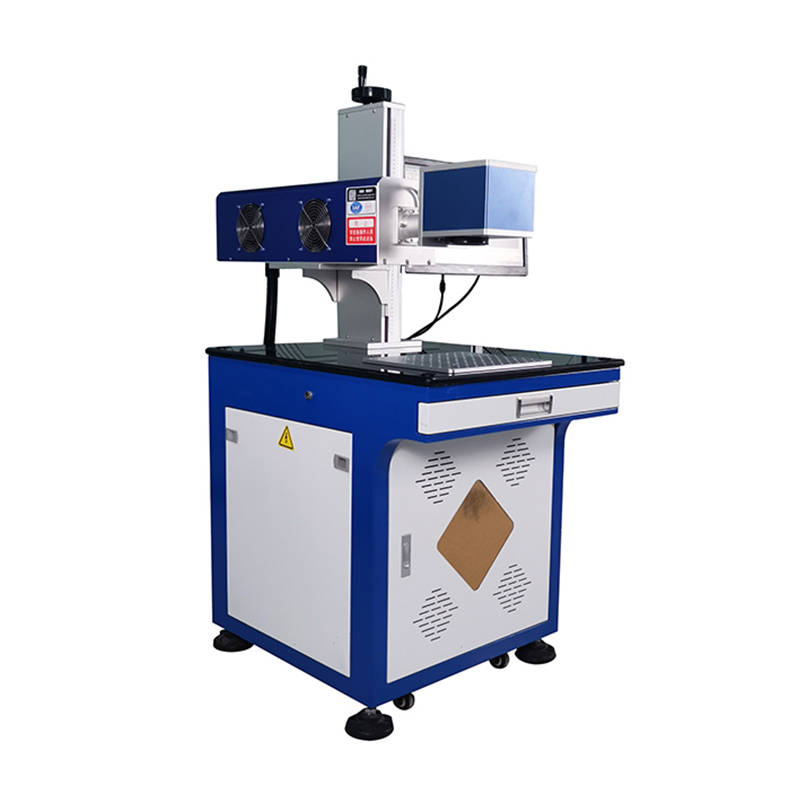

CO2 Laser Marking Machine

Video Link Model :LK-CO2

Power options : 20W /30W /60W

Great at marking paper, resins, wood, rubber and transparent materials (like glass and PET).

Stable performance and able to work for a long time (up to 20000h).

system is high in marking precision, fast in speed and extreme stable in performance.

24 Month maintenance

Fast delivery

24 Hour treatment

Production video

Product Details

Description

Technician Specification

Packing List






Feature :

1.Professional software

 Compatible with a lot of software, no-touch processing for collecting and making various labels,No impact on the surface of original products (high resolution remained)



2.Excellent quality

machine was equipped with CO2 laser source and high-speed galvanometer,the speed is extremely fast and the precision is very high. The machine performance is steady and can continuously working 12 hours. The optical system is fully sealed, it can prevent the dust enters laser body and reduces the equipment failure rate



3.Suit for non-metal material

Widest non-material marking range reduces the number of lasers that are required to cover multi-lane / wide web applications, reducing investment and running cost



4.Good marking effect

In the same plane, you can achieve black and white, and even multi-color marking, the effect is more abundant. For general metal surface blackening, such as anodized aluminum

Laser power

20W /30W /60W

Laser Type

CO2 laser

Focus mode

Galvo head

Effective working area

70*70~300*300mm

Marking depth

<0.4mm

Line width

0.01-0.05mm

Marking Speed

1000 mm/s

Repeatability

0.001mm

Marking accuracy

0.002mm

Marking software

EZCAD2

Marking content

Image processing,Common vector images are supported. (ai, dxf, dst, plt…)

Common types of images are supported. (bmp, jpg, gif, tga, png, tif…)

Serial number , QR code, Bar code .......

Machine size

940*660*1340mm

Package size

960*680*1540mm

Machine net weight

125KGS

Machine gross weight

140KGS

4 Mounting screw

2 Positioning strip

1 Protective goggles

1 Pedal

1 Ruler

1 tool kit

1 U disk

1 box aluminum plate

1 Power cable

Machine
