Application of UV laser on ceramic materials

Time：2024-08-30

In modern industry, ceramic materials are widely used in various fields due to their excellent physical and chemical properties. From precision electronic components to harsh industrial equipment, ceramics have become one of the important materials to promote scientific and technological progress with their irreplaceable advantages. However, how to make lasting and clear marks on these materials has always been a difficult problem in industrial processing. With the development of laser technology, laser ceramic blackening technology came into being, providing an efficient and environmentally friendly solution to this problem.
Comparison between traditional processing methods and laser processing methods
Traditional ceramic blackening technology mainly relies on mechanical engraving or chemical etching. These methods not only have problems such as low precision, low efficiency, and easy damage to materials, but also have many consumables and great environmental pollution, which do not conform to the principles of modern green manufacturing
The marking is clear and durable. Laser processing technology, especially solid-state ultraviolet laser technology, has become an ideal choice for ceramic blackening technology with its advantages of non-contact, no consumables, high temperature, not easy to fade, and strong processing flexibility. The high energy density and short pulse width of solid-state ultraviolet lasers can accurately control the processing process and achieve fine blackening of the ceramic surface while maintaining the original physical properties of the material.

Process methods	UV laser marking on ceramic	Fiber laser marking on ceramic	Mechanical engraving on ceramic	Chemical etching on ceramic
Details	Non-contact, no consumables, clear marking, marking text with high temperature resistance, not easy to fade, strong processing flexibility.	Non-contact, no consumables, limited materials with low blackness, and strong processing flexibility.	It is easy to damage the surface of the material, causing micro cracks and affecting the strength and durability of the ceramic.	The use of hazardous chemicals can pose risks to the environment and operator health, and the processing time is long and inefficient.

In the technology of ceramic blackening, 15W UV laser is a commonly used light source. Its high energy density laser beam can act on the ceramic surface quickly and accurately to form a clear and lasting black mark. By adjusting the parameters of the laser, ceramics of different materials can be blackened. At the same time, 15W UV laser also has the characteristics of easy operation and good stability, which provides a strong guarantee for the widespread application of ceramic blackening technology. However, when using 15W UV laser for ceramic blackening, it is also necessary to pay attention to the control of single pulse energy. Single pulse energy that is too low may result in unsatisfactory blackening effect, while single pulse energy that is too high may damage the ceramic surface. Therefore, in practical applications, adjustments and optimizations need to be made according to specific circumstances.
ceramic black laser marking

Comparison of markings by UV lasers of different powers
White ceramics mainly include alumina, zirconia, etc.
Due to their different doping contents, the laser marking effects will also vary. Taking alumina ceramics as an example, the comparison of processing speeds of lasers of different powers under the same effect is as follows:
UV laser marking speed

Comparison of processing speeds of lasers with different powers under the same effect
Under the same efficiency, lasers with different powers have different effects on ceramic blackening. The actual test marking effect is as follows:
Different effects of 15W, 10W, and 5W markings at the same efficiency
ceramic laser marking sample

From the above content, it can be seen that the power of the laser has an important influence on the processing efficiency and effect. With the increase of the laser power, the processing speed shows a significant upward trend under the same effect. Due to the low power of the 5W laser, its marking blackness is relatively limited, but it can still meet the needs in some specific scenarios: 10W and 15W UV lasers have higher power and faster processing speed. While ensuring the processing speed, higher quality marking effects can be achieved, becoming the mainstream choice in ceramic blackening Ding art. In practical applications, it is necessary to select the appropriate laser model and parameters according to the needs of the county.

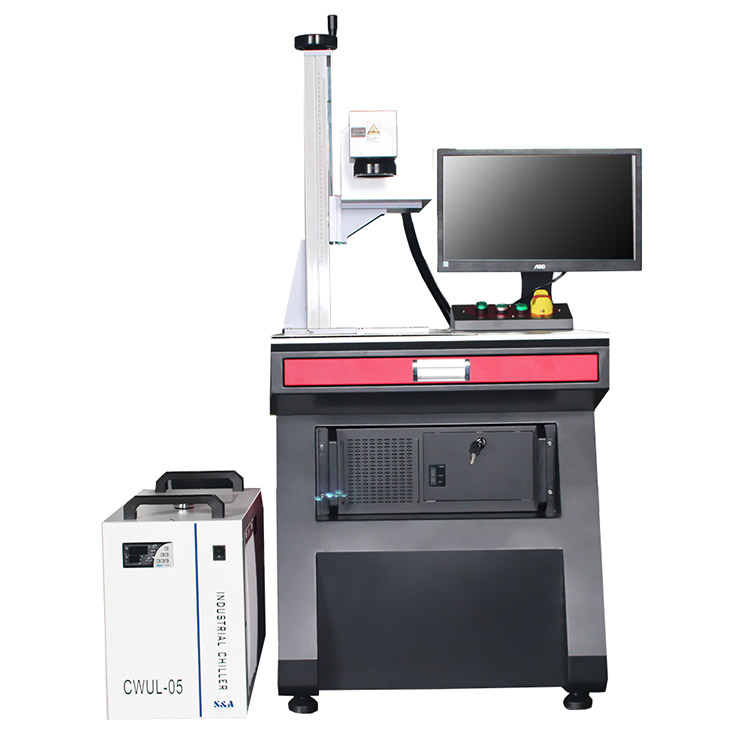

LK LASER has been widely recognized by customers in the ceramic blackening process. By continuously optimizing the performance and parameters of the laser, it can provide customers with efficient, high-quality, and low-cost solutions. if you interested in ceramic laser marking machine welcome to contact us
