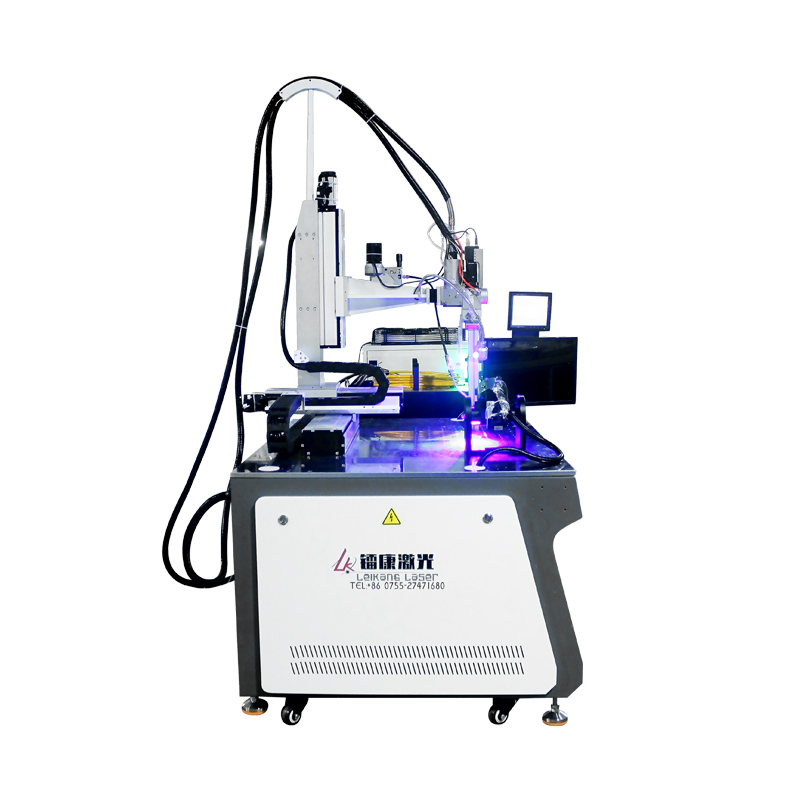

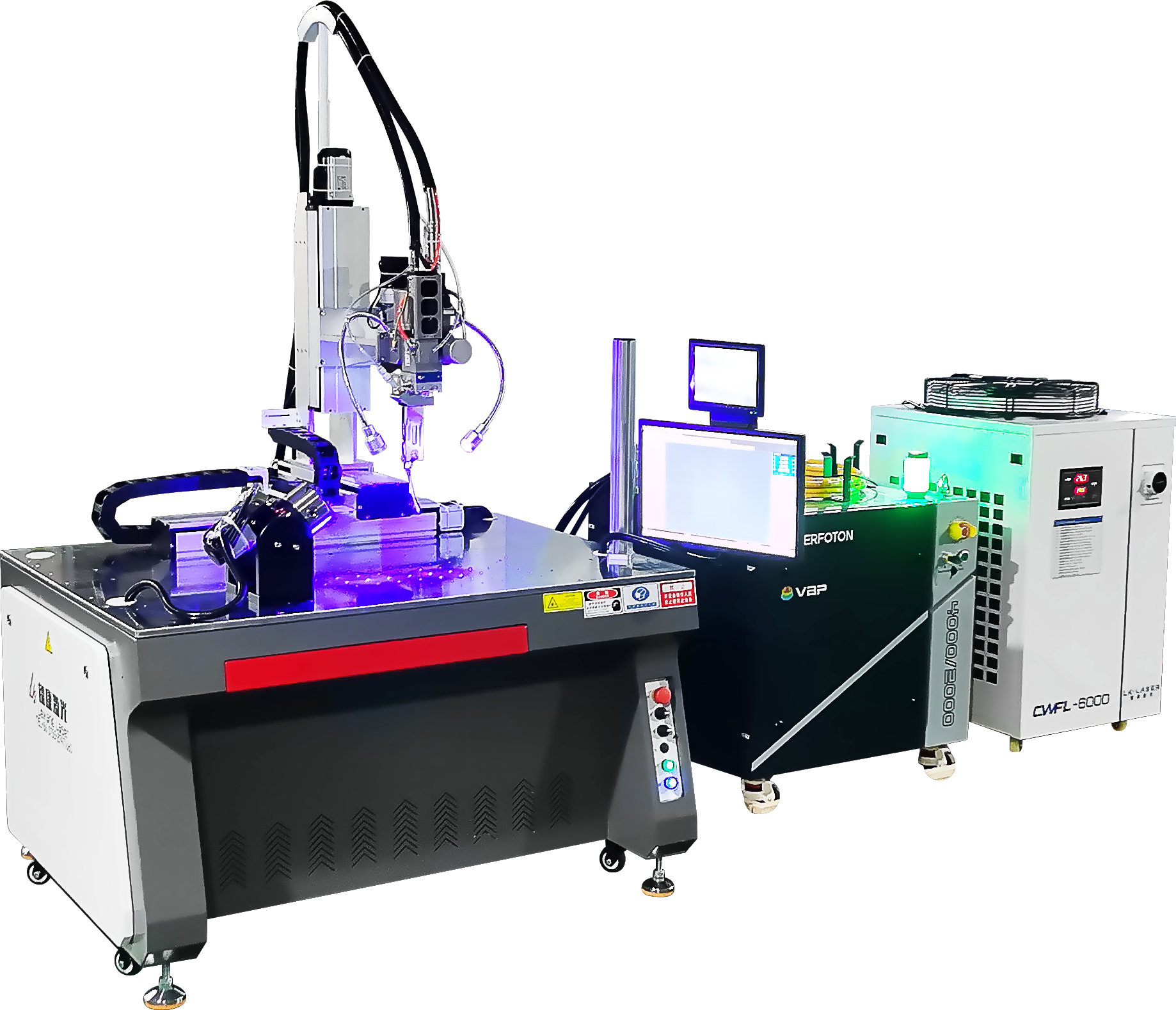

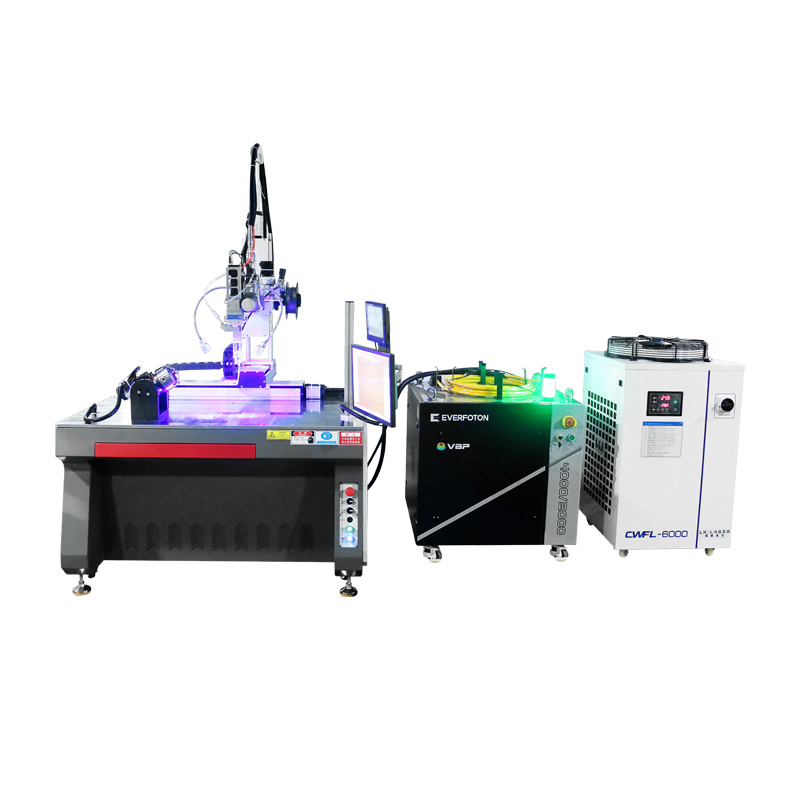

Video LinkModel :LK-LWF
Power options : 4000W /6000W/ 9000W/ 120000W
automatic high power ring and core beam suit for high reflective material welding like brass to copper, metal to copper, copper to stainless steel.....
CNC welding system auotomatic programming
24 Month maintenance
Fast delivery
24 Hour treatment
Feature :
High power automatic laser welding machine adopt VBP (Variable Beam Profile) laser source provide output power from 4000W ~12KW options which laser can adjust the laser beam shape automatic, like ring beam, circle beam...... etc. lasers realize the adjust the output beam mode independently, and can realize the combination of high-energy and high-brightness small center beam and larger ring beam according to the processing requirements to meet customers' wider material thickness range.
this model suit for high reflective and thick metal material welding like copper weldign to copper, brass welding to brass, copper welding to brass, copper welding to stainless steel ......
1. High efficiency: fast laser welding speed, can complete a large amount of welding work in a short time, significantly improve production efficiency.
2. High -precision: Laser welding technology can achieve millimeter -level welding accuracy, accurately control welding depth and width, and reduce errors.
3. Low damage: Laser welding has a small damage to lithium batteries, which helps increase the product's good product.
4. Portability: automatic design makes the equipment easy to programming, suitable for welding operations in various complex environments, and get rid of venue restrictions.
5. Precision welding: Laser welding technology has the characteristics of precise control and can achieve precision welding of fine components.
6. Safe and environmental protection: There is no need to use welding agents during laser welding, which reduces the emissions of harmful substances and is conducive to ensuring the health of the operator.
7. Low maintenance costs: simple equipment structure, convenient maintenance, and reduced long -term use costs.
8. Strong adaptability: Handheld lithium battery laser welding machine is suitable for a variety of welding materials and scenes, which improves the flexibility of production.
In summary, automatic laser welding machine which can improve welding efficiency, accuracy and quality, and reducing production costs and environmental pollution. It is one of the important directions for future welding technology development.
laser beam type
why we recommend variable beam profile type laser source used in welding copper, brass, aluminum ......
ordinary optical ifber laser welding on copper, brass ...... its welding keyhole or laser beam line was formed, which produce with spatter and pores, and holes on welding surface ,even after polishing still not good appearance, and also welding quality not stale and easy to deform while do pull & press testing
on this basis, the beam adjustable multi-mode continous fiber laser adjustable technology, in the center core and outside core with different power adjustm,ent which can effcectively overcome normal laser welding problem, provide high peneration welding on high reflective material with high efficency, laser engergy suit for most of brass, copper, aluminum ..... thick materail welding
Laser power |
4000W/ 600W/ 9000W/ 12000W options |
Laser Type |
fiber laser |
Focus mode |
fixed |
Axis |
XYZA axis stroke length adjustable (customization) |
Visual system |
red light & ccd vision |
Software |
LK LASER |
Cooling method |
Water cooling |
Machine size & weight |
1300*1000*1680mm 360KGS |
Laser source size & weight |
650*750*650mm 180KGS |
Water cooling system size & weight |
1150*960*1450mm 150KGS |
Welding materail |
thick high reflective materail like copper, brass, aluminum, ..... |
1 Protective goggles |
1 Power cable |
1 data cable |
1 tool kit |
1 U disk |
Machine |
