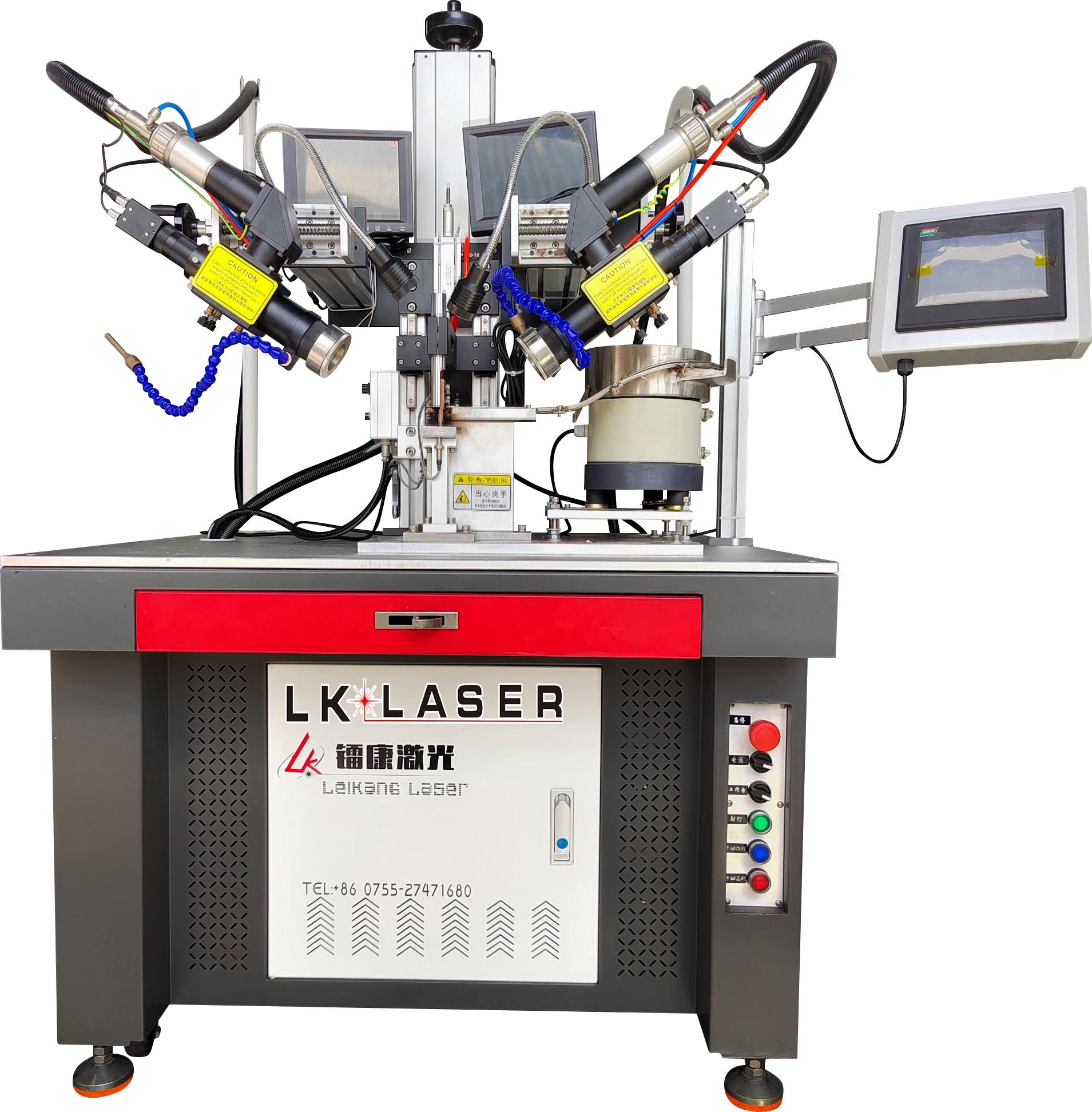

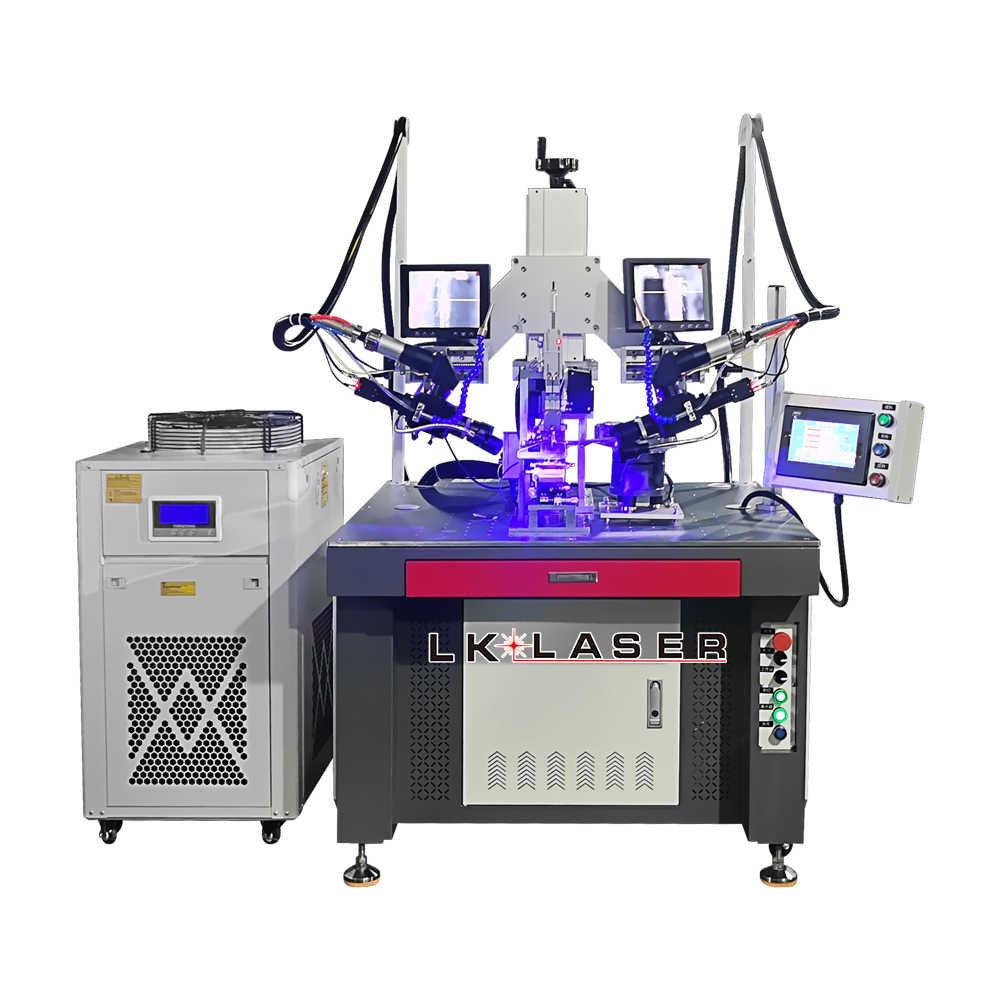

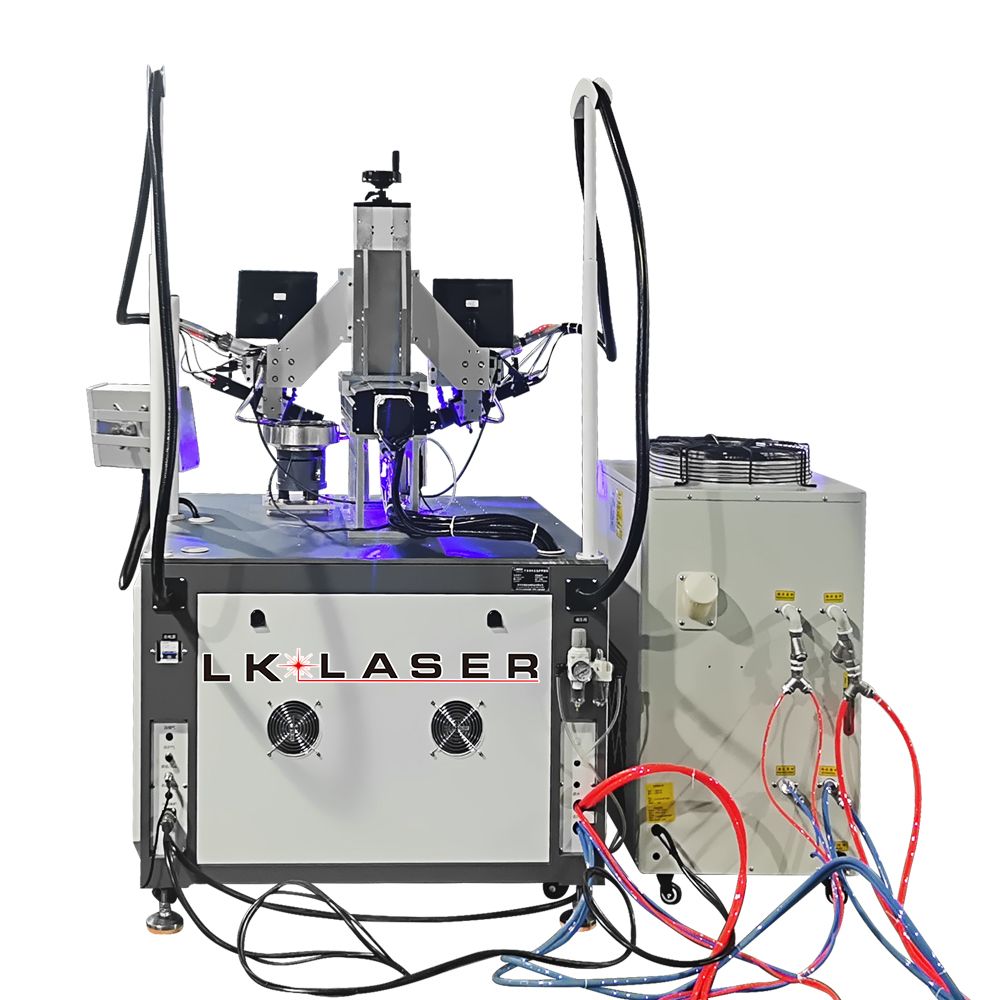

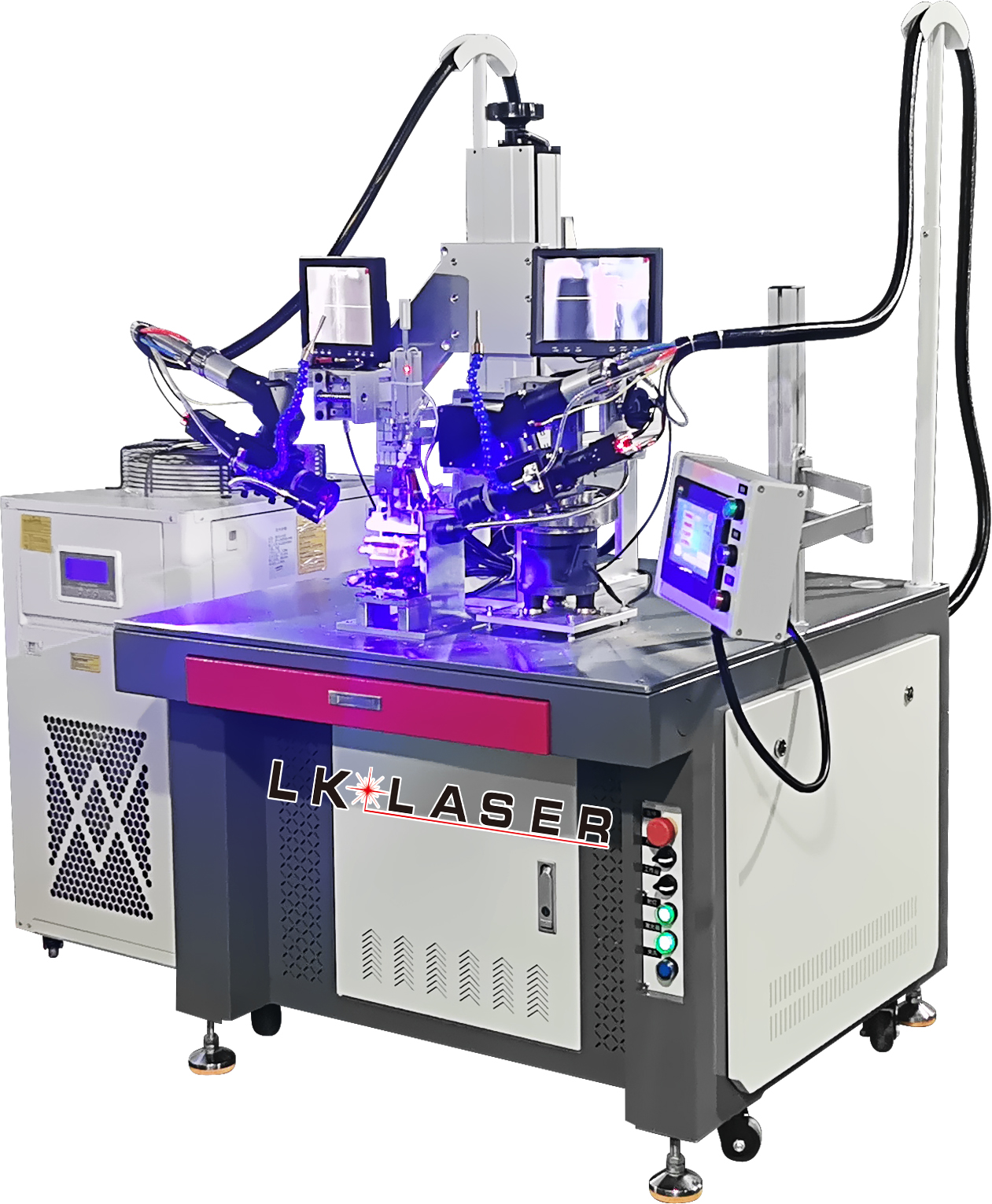

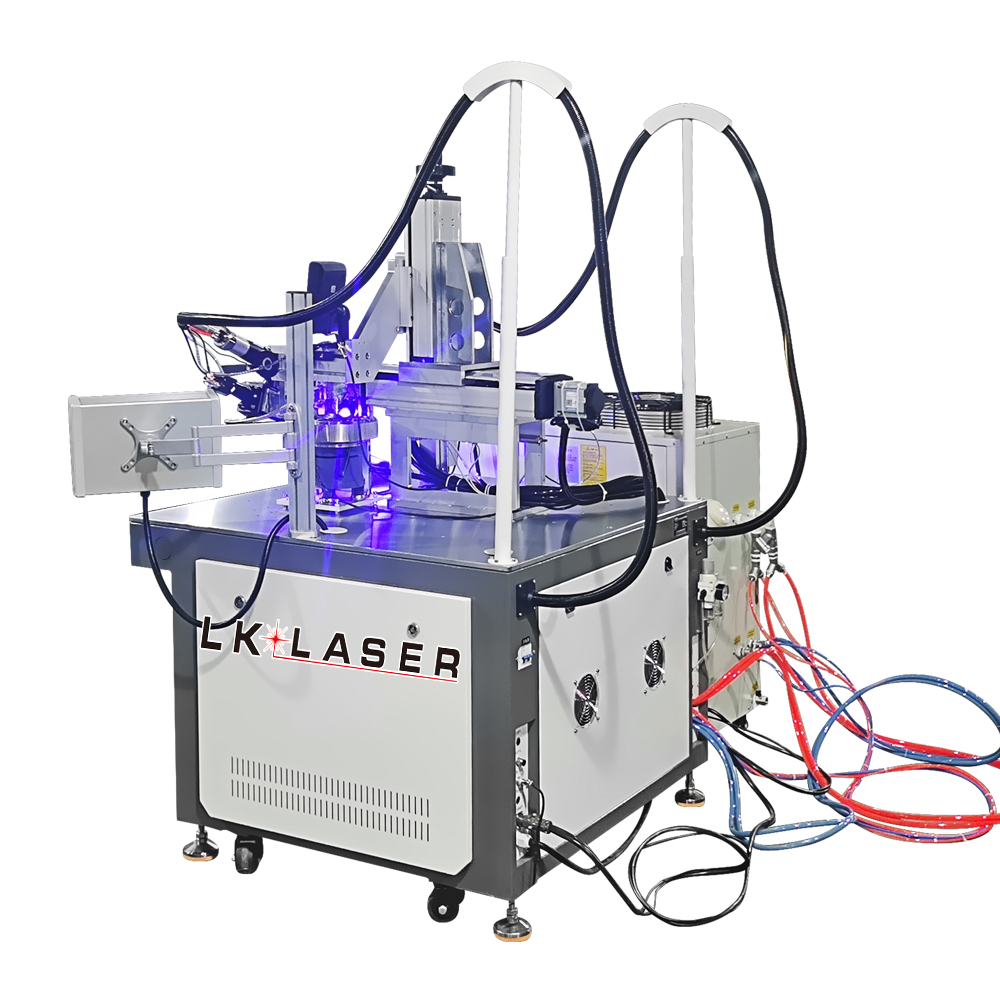

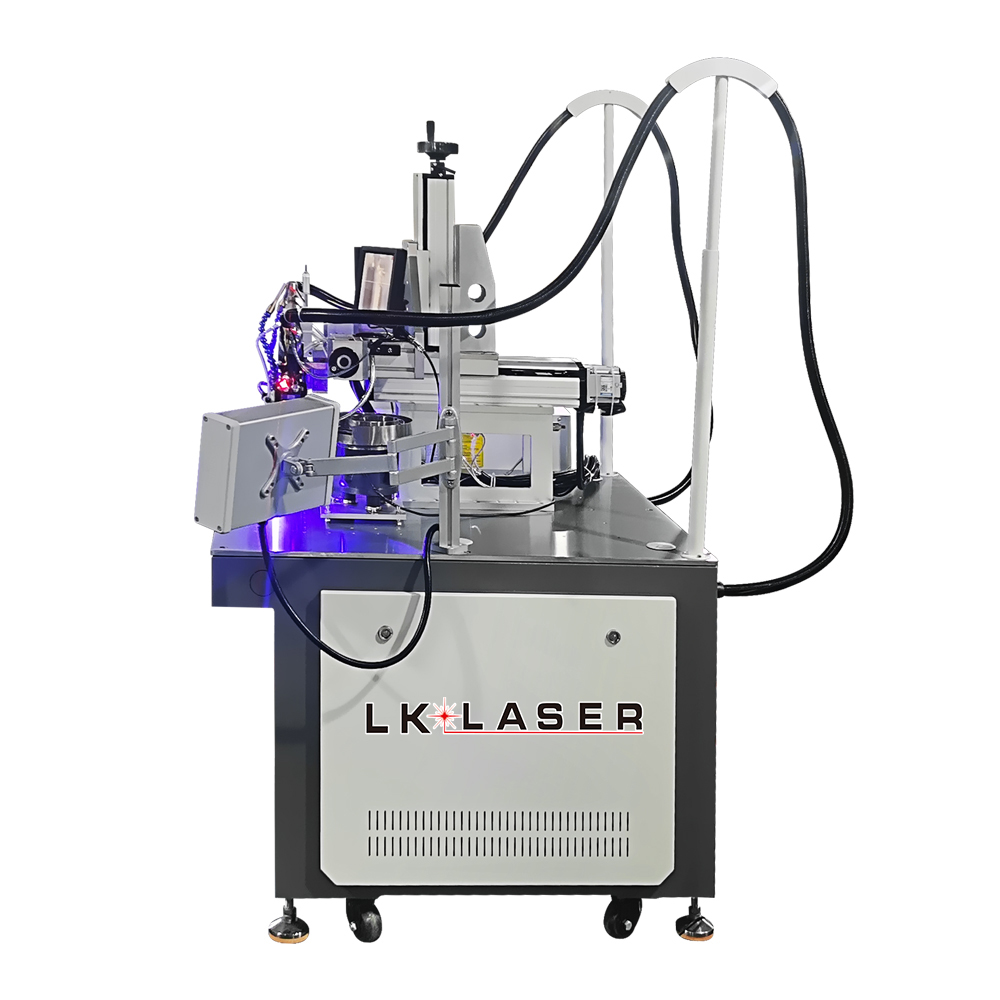

Optic Frame Temple Automatic Laser Welding Machine

Video LinkModel :LK-GQF

Power options : 500W/ 1000W
Automatic welding optic spring hinge with vibrating plate feeding hinge
double welding head  welding hinge by both side more stable and efficiency

24 Month maintenance

Fast delivery

24 Hour treatment

Production video

Product Details

Description

Technician Specification

Packing List

optical frame laser welding machine
frame laser welding machine
hinge laser welding machine
double head laser welding machine
spring hinge laser welding machine
CNC laser welding machine
dental laser welding machine
eyewear frame laser welding machine price




Machine Advantages

1. Double head welding :
two welding hed can work more effctively improve welding speed and welding quantity, also its arrange in different configurations to suit specific welding precise with advanced automation featurs, make welding job more high volume and more automotion
double head laser welding structure

2. Automatic vibrating plate
Machine equiped with vibrating plate which can feeding optical frame hinge and some samller bolt, nuts, screws ...... automatic feeding the micro parts to welding area
automatic feeding laser welding machine
3. CCD Vision System
with CCD display can observing the micro welding area and welding part more convenient for welding process and laser precision beam alignments
vision laser welding machine
4. 3 Motion Axis
customization laser welding axis multi function and via system control motivation,suit for more complex shape or product high accuracy welding job
multi axis laser welding machine
5. Control System
LCD control panel could setting machine power and frequency ....... parameters to do quick adjustment friendly to operations
PLC laser welding machine

optica frame hinge welding sample - Whatsapp us get more details : +86 15797743424
optical frame laser welding sample

Axis stroke

XYZ-200*300*100mm

High precision welding head

double welding head

Max speed

10m/min

Laser power

≤1000W~500W

Power adjustment range

5-95%

Laser wavelength

1064±5nm

Beam quality M2

<1.5

Minimum welding seam

0.1~0.3mm

Working method

CW

Cooling method

Water cooling

Cooling temperature

20-25℃

Cutting gas pressure

1.0-2.5MPa

Power

<12kw

Power supply

AC220V 50Hz 1Phase

Weight

470Kg

1 Protective goggles

1 Power cable

1 data cable

1 tool kit

1 U disk

Machine
