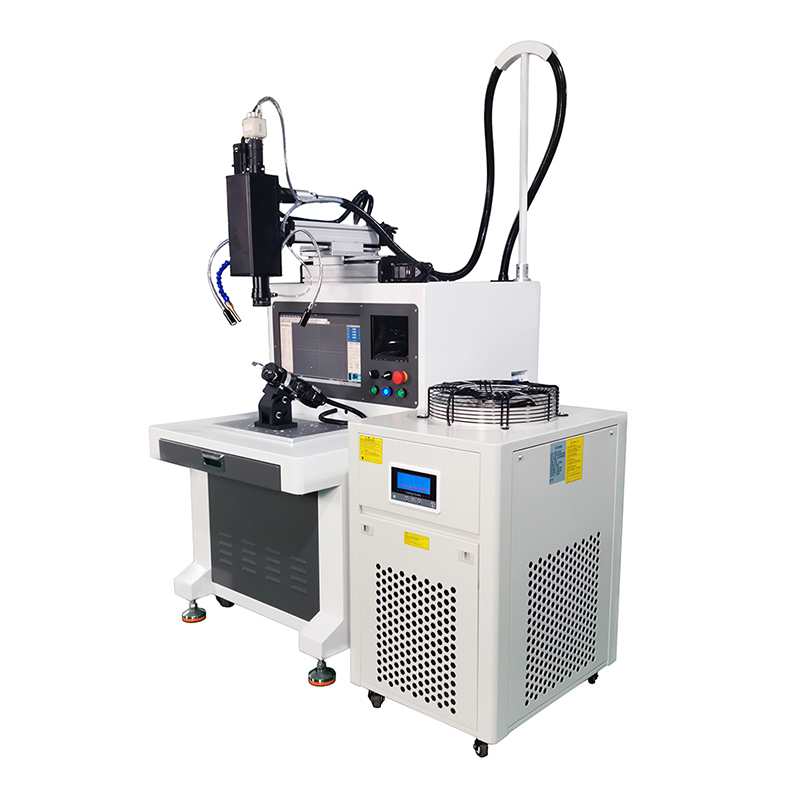

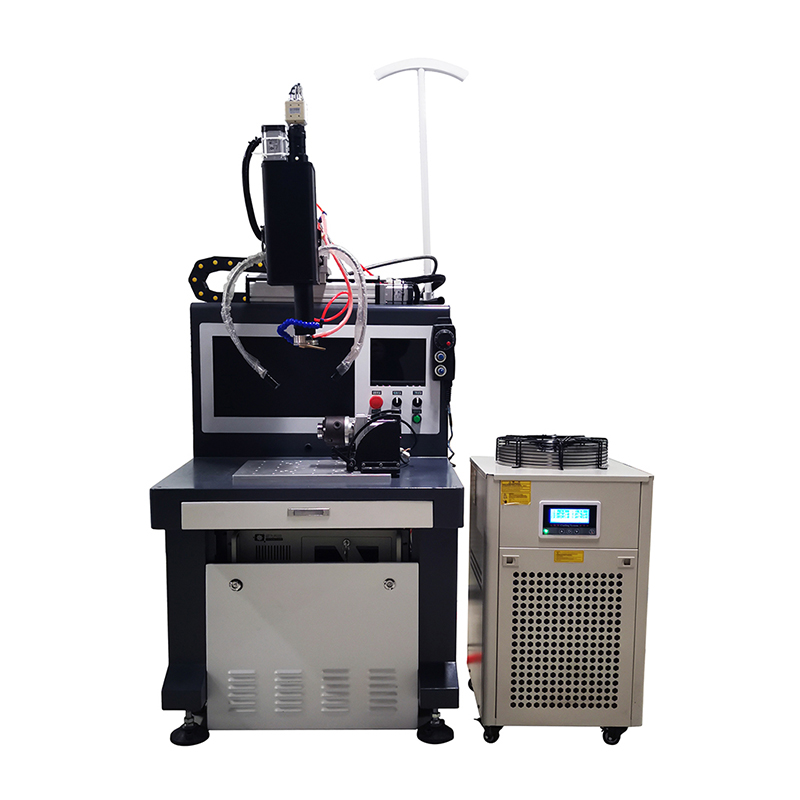

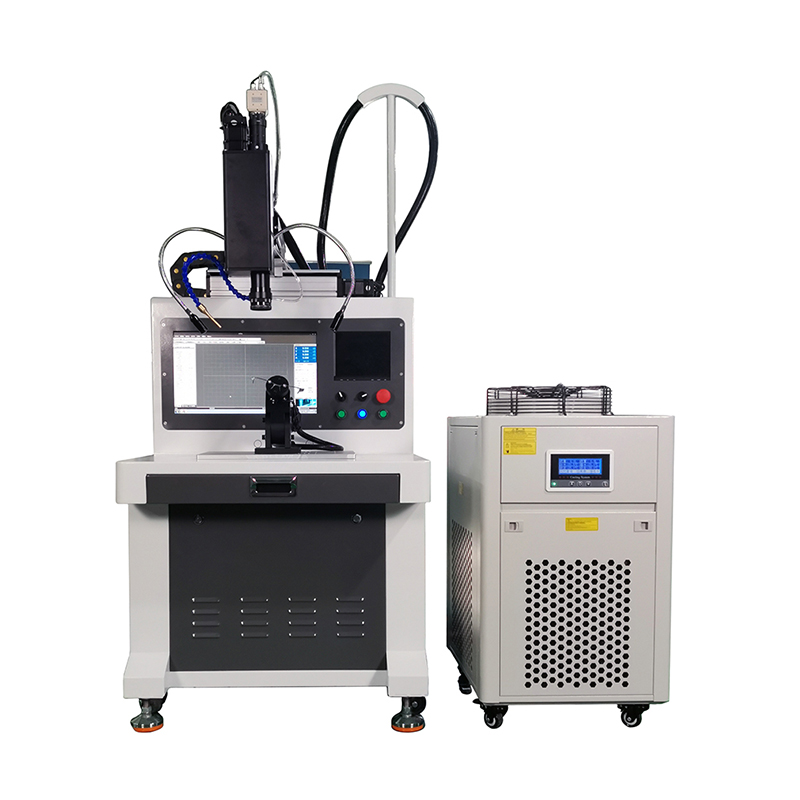

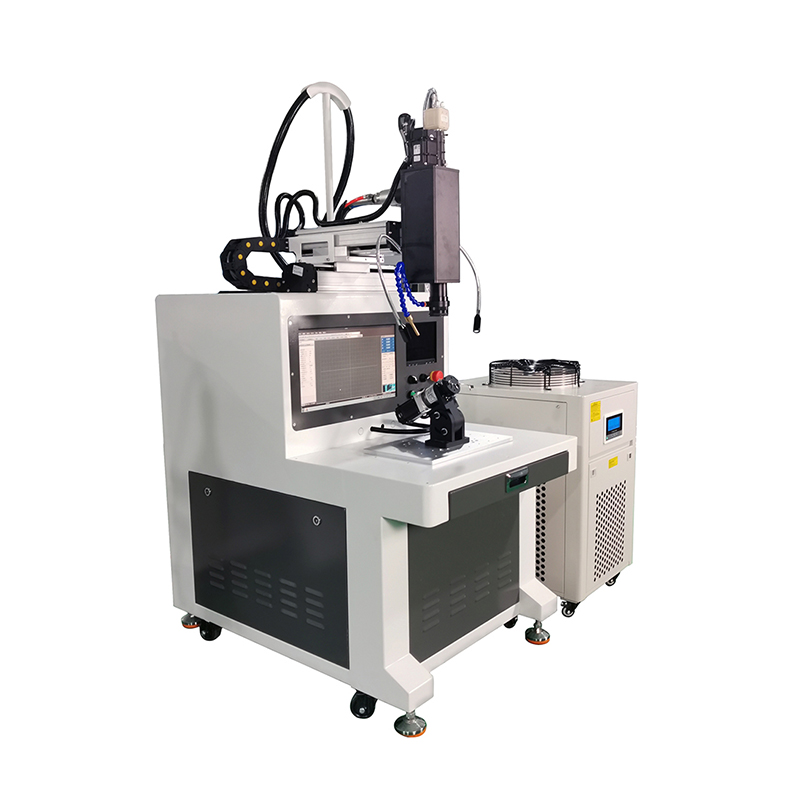

Model :LK-Y
Power options : 500W /1000W
Machine could welding material: metal, aluminum ,stainless steel ,cooper ,titanium ........
CNC control system ,High speed welding ,automatic control,
precision working with high efficiency
24 Month maintenance
Fast delivery
24 Hour treatment
Feature :
1.Machine system
Adopt CADDSP welding software could be programming welding process on machine system to achieve automatic welding and suit for batch product welding
2. CNC working table
automatic laser welding machine,which increase Z axis ,it’s specialized for welding eyeglasses frame ,the Z axis will fixed the eyeglasses frame and let it welding automatic by CNC control system
3.High efficiency
working principle is to generate high temperature by continuous pulse laser focusing, melt stainless steel material or titanium alloy, equipped with professional computer software automation system to realize integral one-time welding.
4.Visual system
welding head with standard 8-inch CCD coaxial monitoring, which is convenient mm for observing the welding effect.
|
Model |
LK-Y |
|
Max. Laser Power |
500W /1000W |
|
Laser Type |
Optical fiber |
|
Laser Wavelength |
1064um |
|
Laser Welding Depth |
0.1mm-2mm |
|
Sighting Positioning System |
Red light ,CCD camera |
|
Cooling system |
External Water cooling |
|
Integrity Power |
6~10kw |
|
Power Supply |
AC220VAC+-15%/50HZ/25A |
|
Lifetime |
3,000,000 times |
|
Machine size |
Machine:750*128*1192mm |
|
Package size |
1728*860*1750mm |
|
Machine net weight |
390kgs |
|
Machine gross weight |
412kgs |
|
1 pcs goggles |
3pcs protective lends |
|
3 pcs water cable |
1 pcs gas cable |
