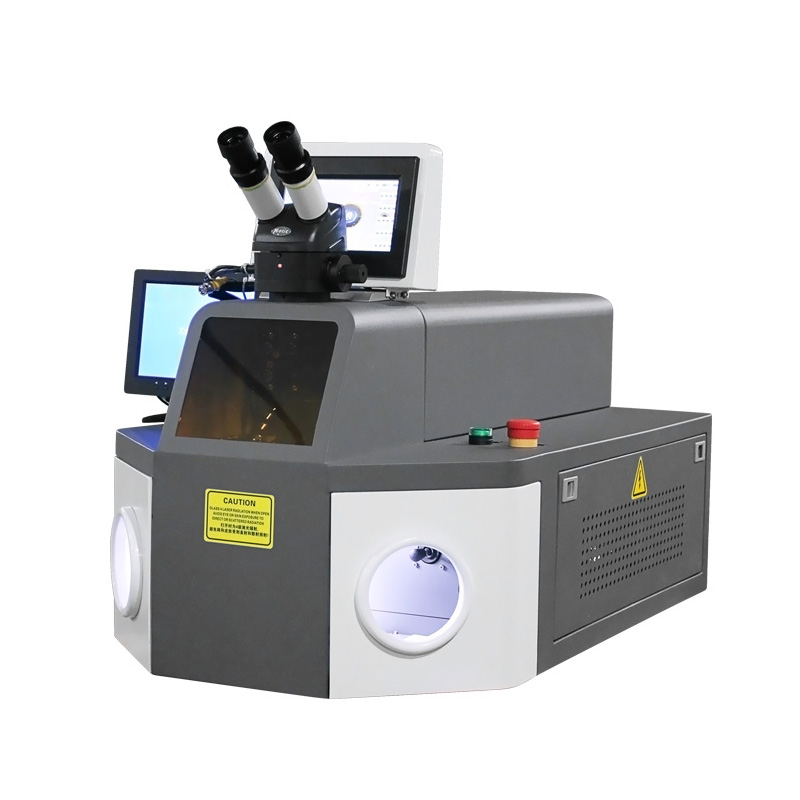

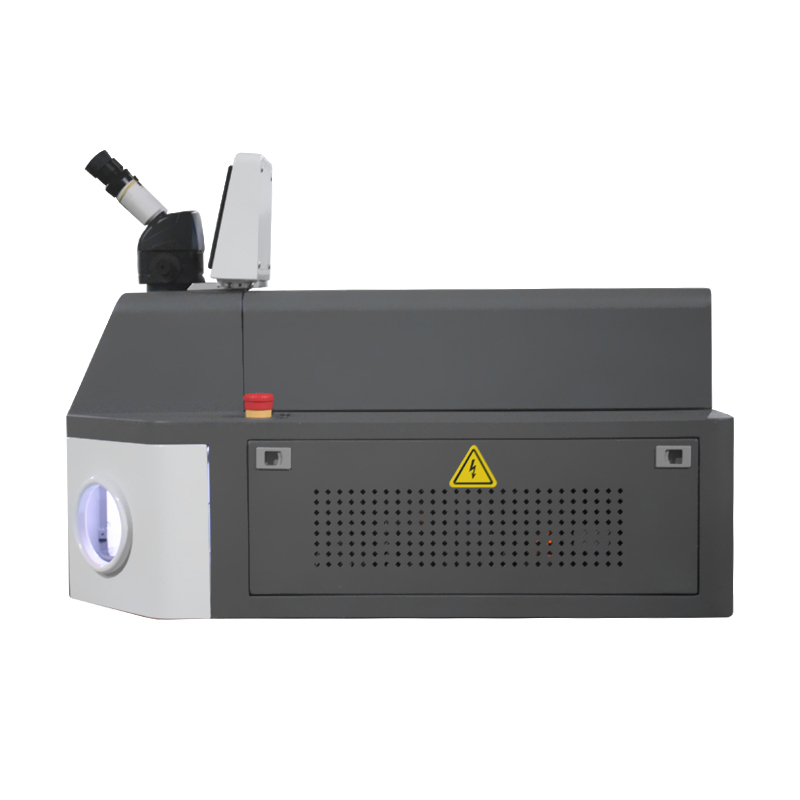

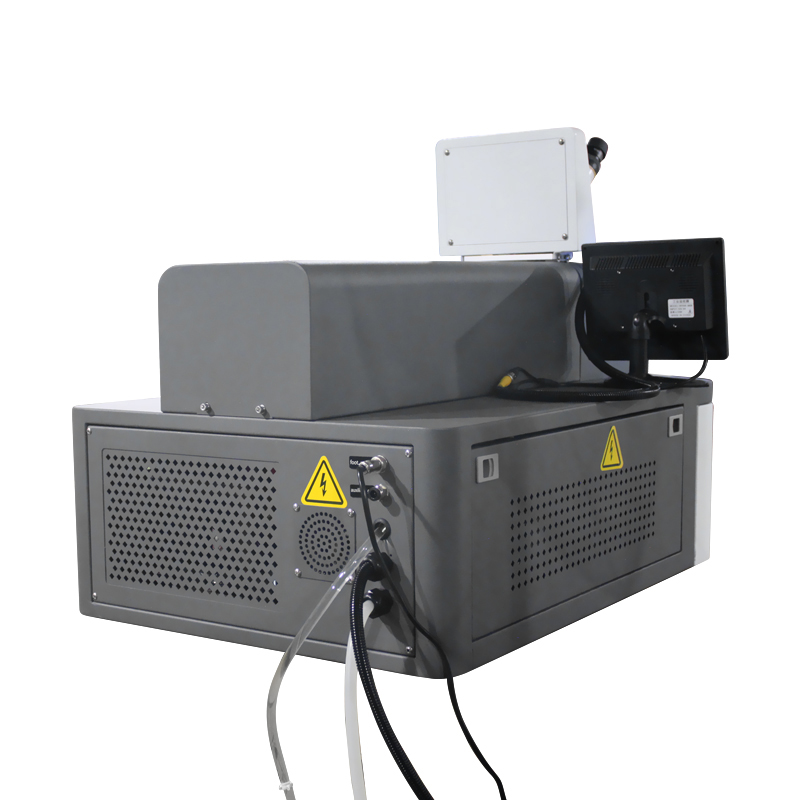

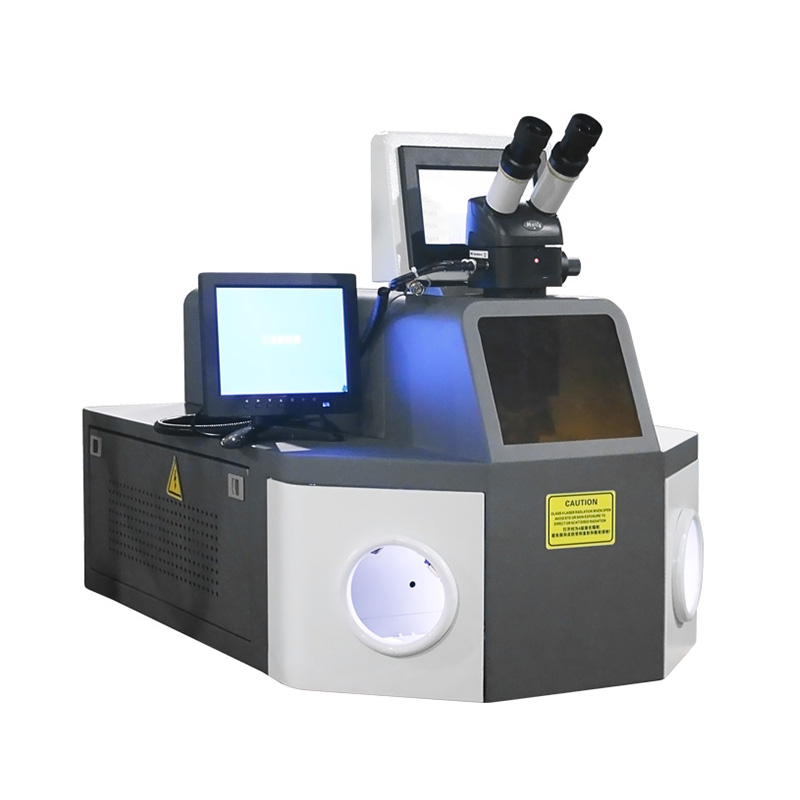

Desktop Jewelry Laser Soldering Machine

VIDEO LINK Model :LK-SWG

Power options : 100W /200W

Machine could welding material: gold ,silver, aluminum , platinum ,copper.....

Desktop type compact design is very convenient for using in a small space

specially used for spot welding, perforating, repairing, re- tipping and re-sizing of gold/silver/titanium jewelry and small accessories. etc.

24 Month maintenance

Fast delivery

24 Hour treatment

Product Details

Description

Technician Specification

Packing List

jewelry laser welding machine malaysiasplit jewelry laser welding machinejewelry laser welding machine manual150w fiber laser welding machine laser jewelry

Feature :

1.Machine system

Adopt HD -CCD colorful visual system & microscope  ,which optional for our customer.software is available in Chinese and English versions, and the language type can be arbitrarily specified.



2.Ergonomic design

High Complete machine ergonomic design further fits jewelry industry of which the products are meticulous and artistic and property is stable and it also meets the needs of long time continuous operation.



3.High brightness

Observation of welding positions is clearer by using adjustable high brightness of LED ring astral lamp and could check the micro welding position on HD-CCD display and 10X microscope MITOC brand.



4.Joystick & LCD screen control

Machine could adjust the welding parameter via inside worktable joystick and outside LCD screen

Easy to operation and multi-function which meet different working request

Model

LK-SWG

Max.Laser Power

100W/200W

Laser Type

YAG

Laser Wavelength

1064um

(Pulse-Width (ms )

0.5ms-20ms

Pulse Energy

100J/120J

Pulse Frequency

0-50HZ

Laser Welding Depth

0.1mm-2mm

Spotlight Cavity Reflector

Metal Cavity

Sighting Positioning System

Red light ,Microscope& HD -CCD camera

Aim Operation

Round Point Cursor

Adjusting range of light spot

0.6-3.0mm

Cooling system

Built-in Water cooling

Integrity Power

5.5kw

Power Supply

AC220VAC+-15%/50HZ/25A

Lifetime

3,000,000 times

Machine size

600*600*850mm

Package size

640*650*1000mm

Machine net weight

93kgs

Machine gross weight

100kgs

1 pcs goggles

3pcs protective lends

1 pcs water cable

1 pcs gas cable
