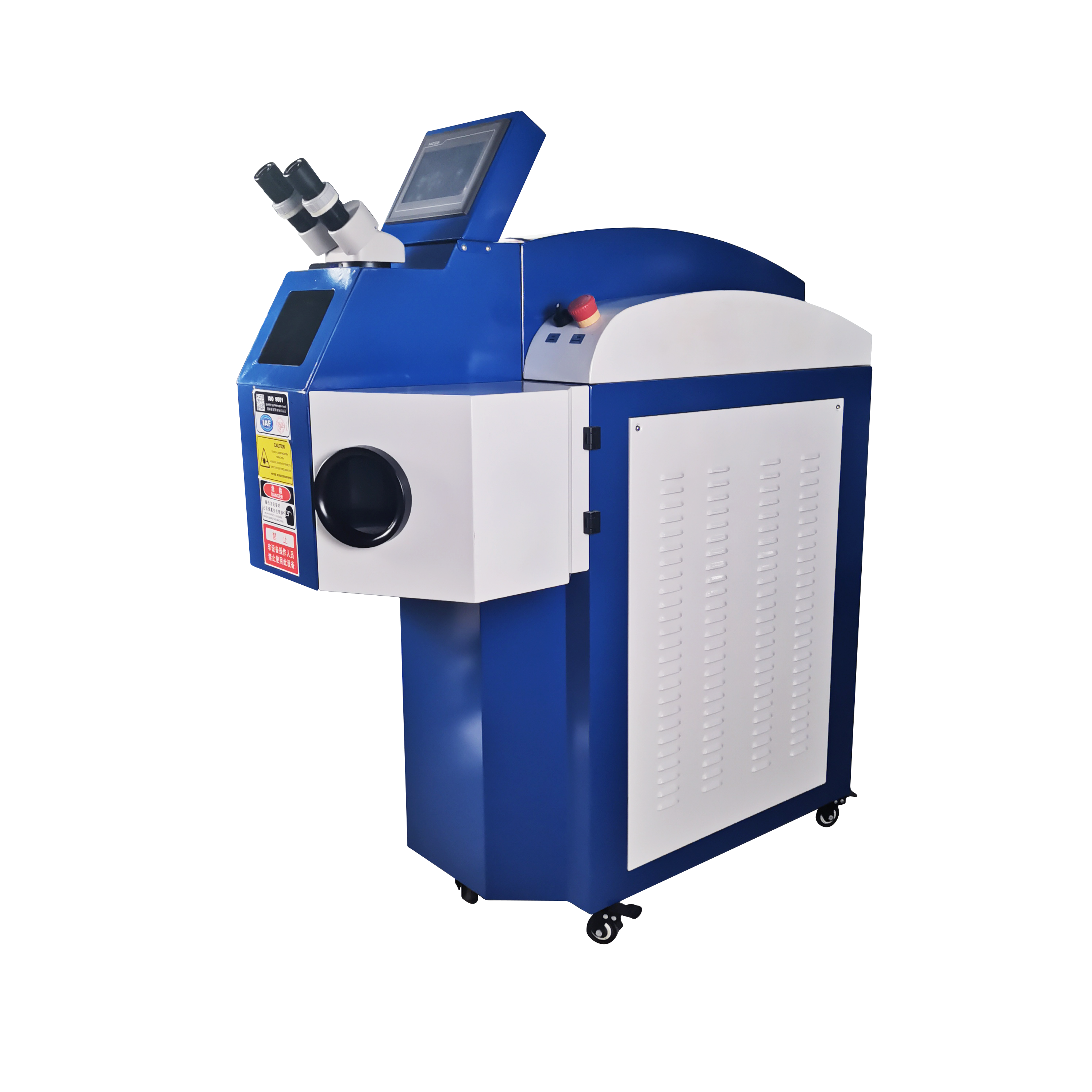

External Chiller Jewelry Laser Welding Tools and Equipment

VIDEO LINKModel :LK-SWE

Power options : 200W

Machine could welding material: gold ,silver, aluminum , platinum ,copper.....

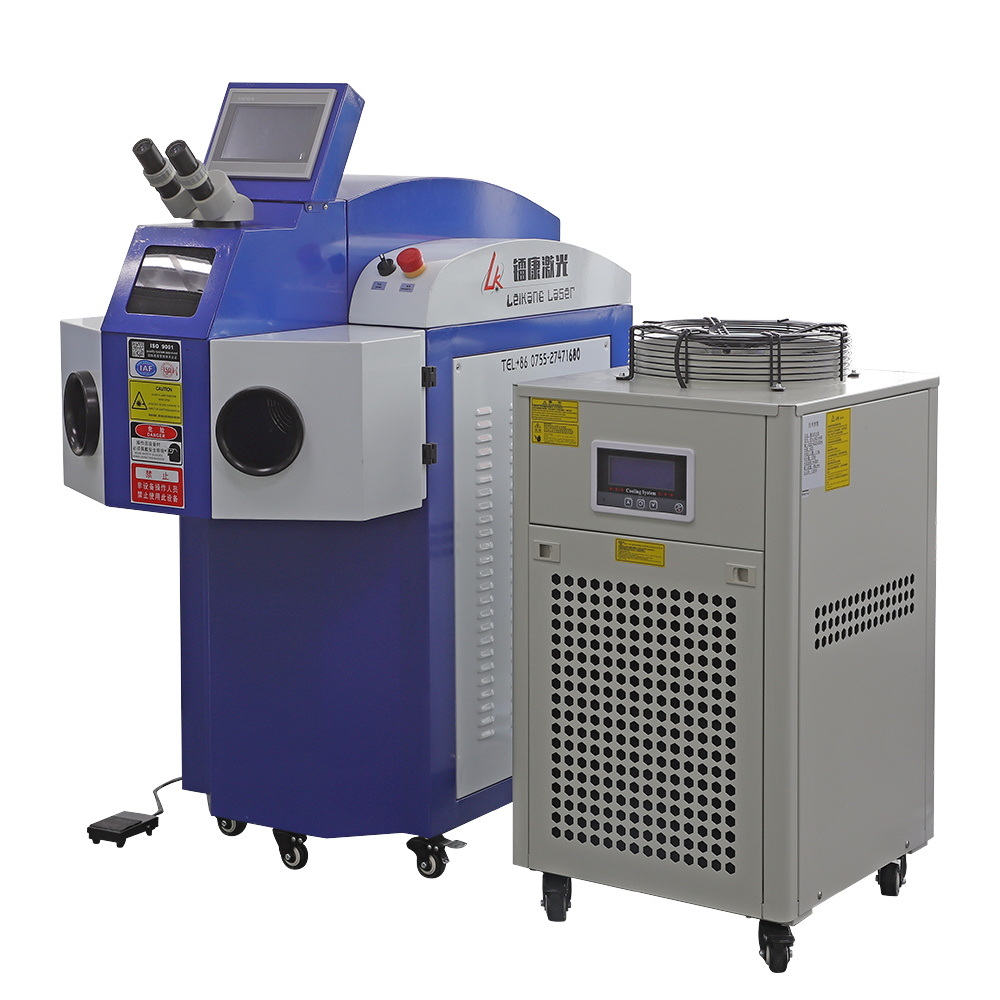

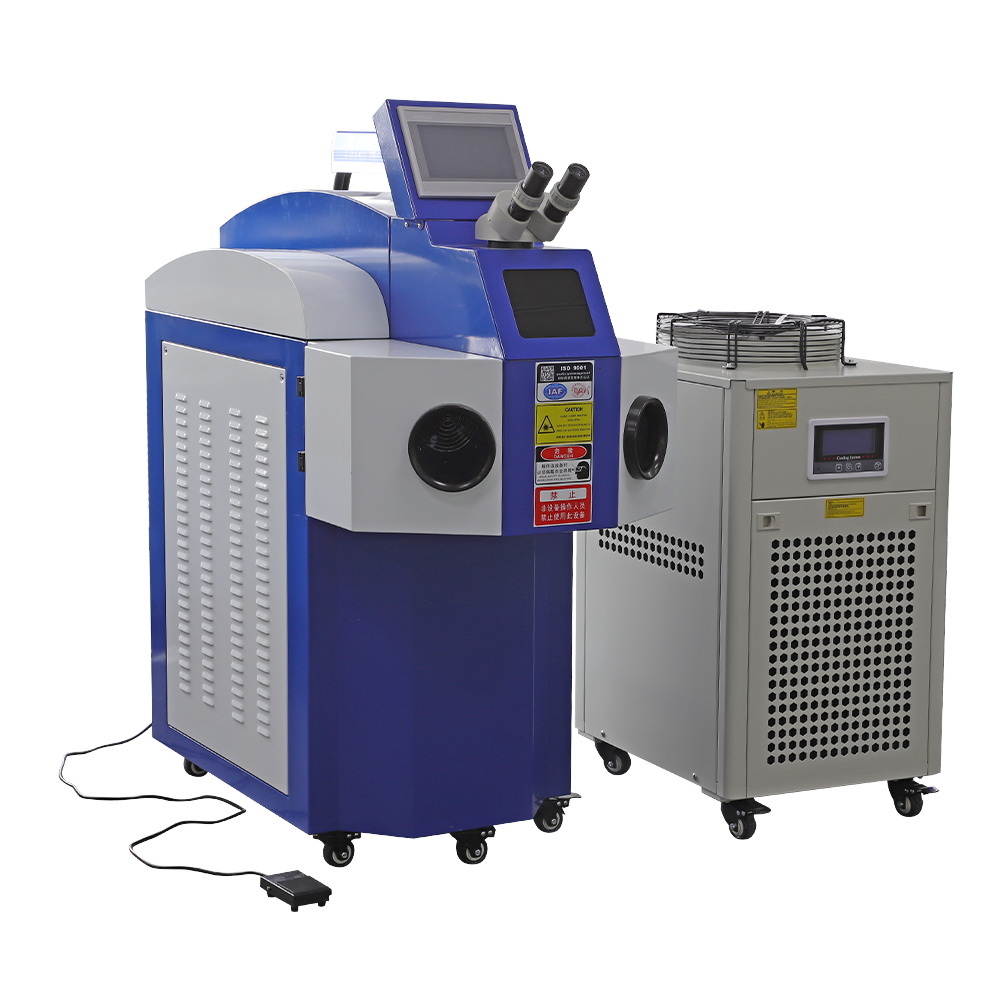

External chiller type ,stable cooling system and welding power system

specially used for spot welding, perforating, repairing, re- tipping and re-sizing of gold/silver/titanium jewelry and small accessories. etc.

24 Month maintenance

Fast delivery

24 Hour treatment

Product Details

Description

Technician Specification

Packing List

Feature :

1.Machine system

Adopt 10x microscope  ,which easy to observation micro jewelry welding position

LCD control penal is available in Chinese and English versions, and the language type can be arbitrarily specified.

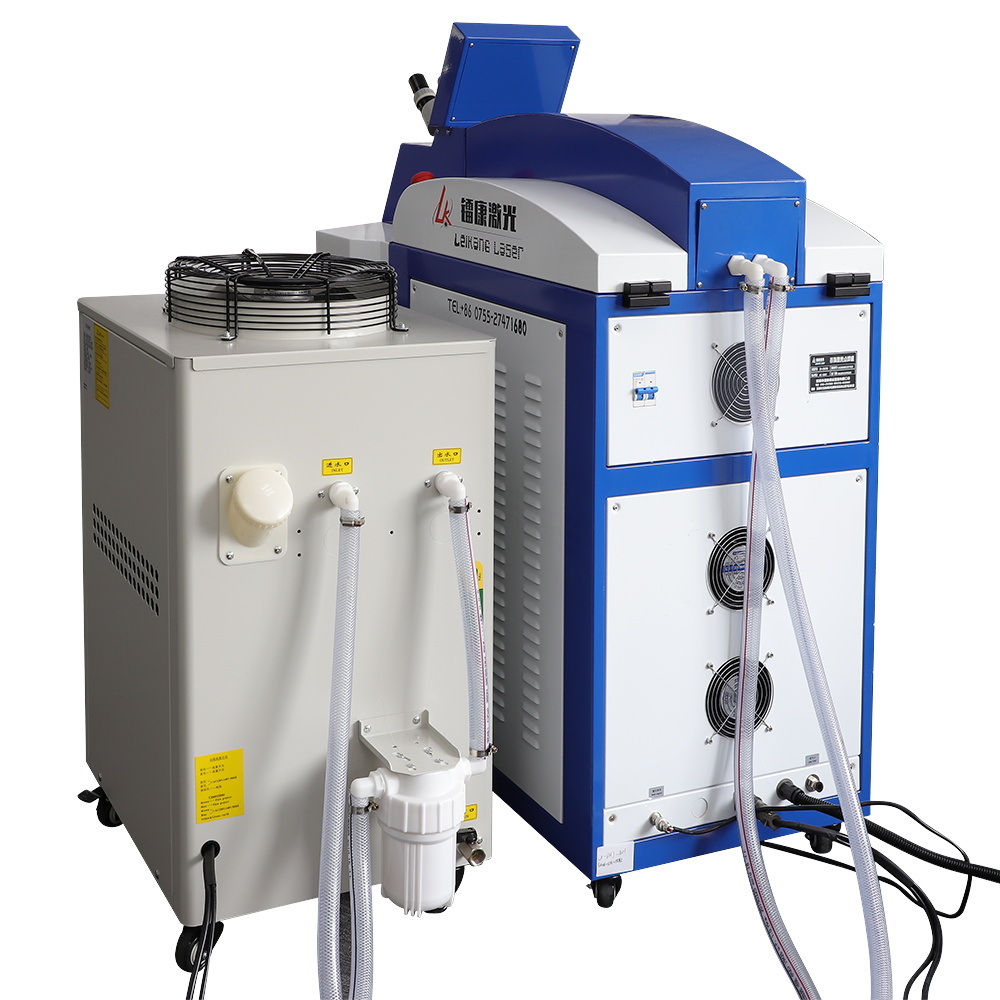

2.External chiller system

cooling method was water cooling ,its with more stable water capacity :18L ,effective reduce the machine’s overheating caused by excessive used of machine



3.High brightness

Observation of welding positions is clearer by using adjustable high brightness of LED ring astral lamp



4.Joystick & LCD screen control

Machine could adjust the welding parameter via inside worktable joystick and outside LCD screen

Easy to operation and multi-function which meet different working request

Model

LK-SWE

Max.Laser Power

200W

Laser Type

YAG

Laser Wavelength

1064um

(Pulse-Width (ms )

0.5ms-20ms

Pulse Energy

150J

Pulse Frequency

0-50HZ

Laser Welding Depth

0.1mm-2mm

Spotlight Cavity Reflector

Metal Cavity

Sighting Positioning System

Red light ,Microscope

Aim Operation

Round Point Cursor

Adjusting range of light spot

0.6-3.0mm

Cooling system

External Water cooling

Integrity Power

5.5kw

Power Supply

AC220VAC+-15%/50HZ/25A

Lifetime

3,000,000 times

Machine size



Package size

1500*725*1380mm

Machine net weight

198kgs

Machine gross weight

210kgs

1 pcs goggles

3pcs protective lends

3 pcs water cable

1 pcs gas cable
