Femtoseconds Laser Marking Machine

Video LinkModel :LK-FSM

femetoseconds laser source / picoseconds laser source/ nanoseconds laser source
Power options: 15W/ 20W/ 30W/ 60W ......
Machine can be matte balck marking on metal surface which can pass salt spary testing
and also drilling or cutting micro hole / line
Ultrafast laser processing is a non-contact processing, with no restrictions on processing patterns and little thermal impact, and is particularly suitable for high-precision micro-machining processes.

24 Month maintenance

Fast delivery

24 Hour treatment

Product Details

Description

Technician Specification

Packing List

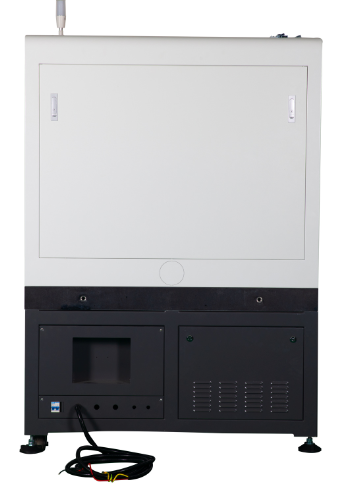

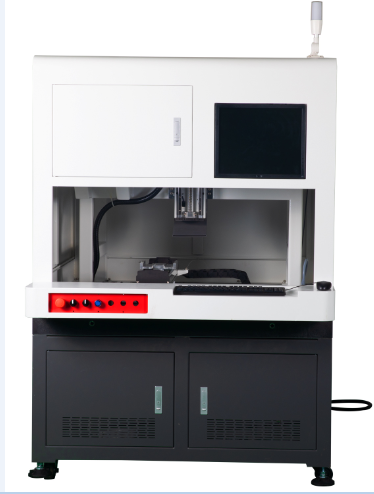

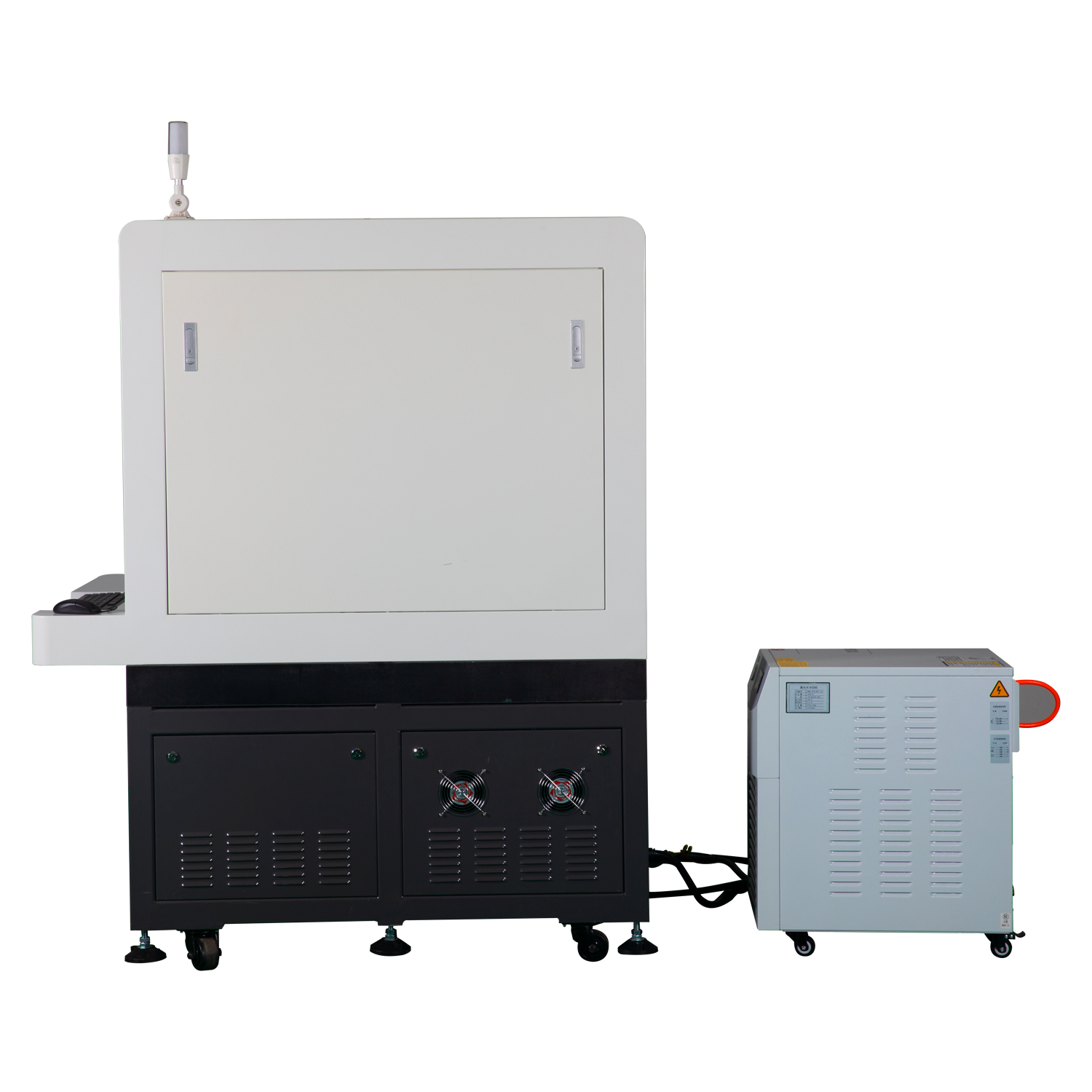

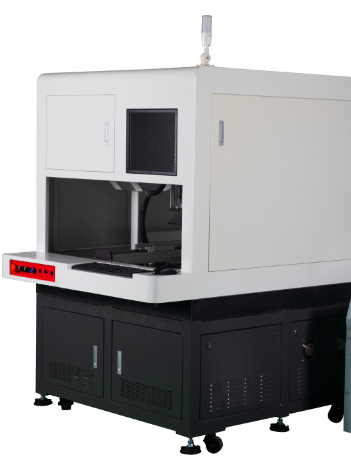

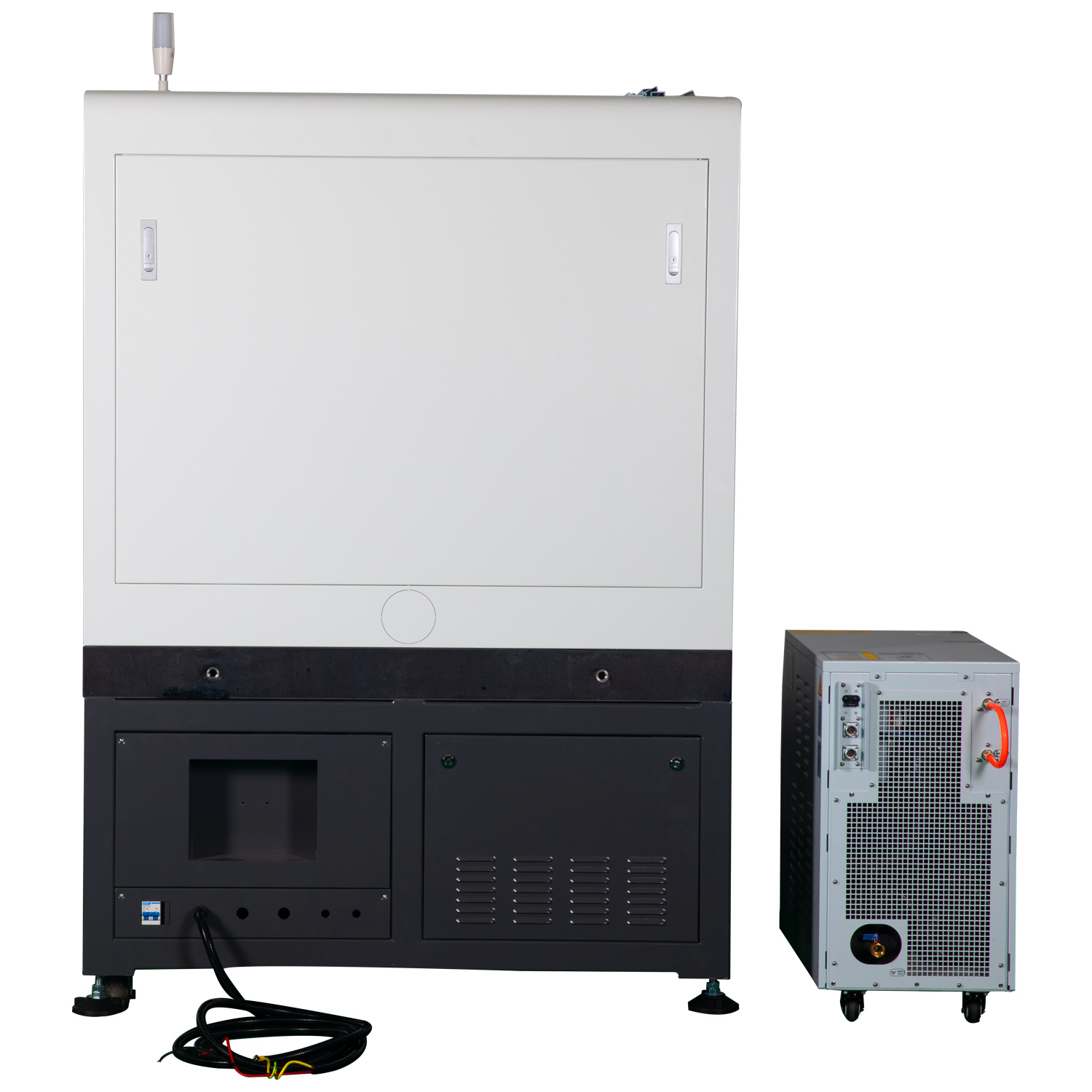

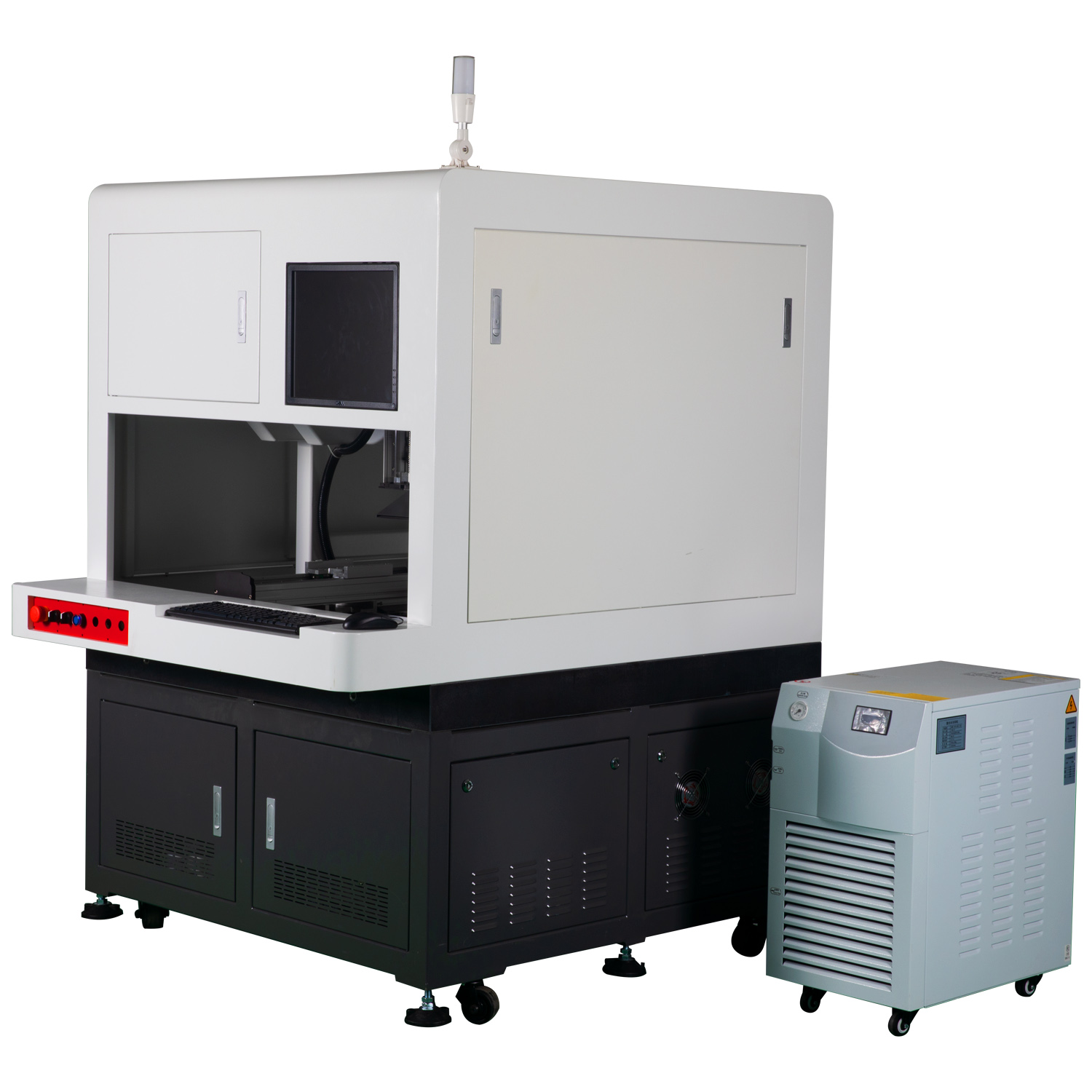

ultrafast laser machine
femtoseconds laser machine details
picoseconds laser machine price
femtoseconds laser equipment
medical laser processing machine


Nanosecond lasers, femtosecond lasers and picosecond lasers are all kinds of lasers, and the difference between them lies in the difference in pulse width. Specifically:

1. Nanosecond laser: The pulse width of sodium second laser is about 10^-9 seconds (i.e. nanoseconds). This laser is usually used to measure time, frequency and distance.

2. Femtosecond laser: The pulse width of the femtosecond laser is about 10^-15 seconds (i.e. femtosecond). This kind of laser is more powerful than sodium second laser. It can be used in cutting, marking, punching and other material processing fields, and can also be used for research in medicine, biology and other fields.

3. Picosecond laser: The pulse width of the picosecond laser is about 10^-12 seconds (i.e. picosecond). This laser is more refined than femtosecond lasers and can be used for more fine material processing and research in medicine, biology and other fields.

In general, the difference between these three lasers lies in the difference in pulse width, which leads to different application fields and uses.

ultrafast laser source with high laser emission frequency and lower marking heat effect used in applications requiring high precision and minimal thermal effects, such as micromachining, medical
treatments , special on medical industry which can pass the salt sparying testing ,can acheived black marking .
ultrafast lasers are defined by their pulse duration (picoseconds laser/ nanosecond laser/ femtoseconds laser ),


picosecond with high laser emission frequency and lower marking heat effect ,Picosecond lasers are

Model  LK-FSM
Max. laser power 10~60W
Laser type Nanosecond /Picoseconds/ Femtoseconds
Laser wavelength 355nm /523nm/ 1064nm
Laser pulse length ≤20ns
Pulse Frequency  50kHz~200kHz
Working method XYZ travel
Cooling Water Cooling
Galvanometer resolution  2um
Focus methods Telecentric lens
Focus spot ≤Ф 15 um
Scanner spee 0 - 3000 mm/ s adjustable
Cutting thickness <1.0mm
XY cutting length 300*400mm
XY driver Line motor+optical ruler
X/ Y moving speed 800mm/ s(max)
X/ Y positioning accuracy ≤±1μm
X/ Y repeated positioning accuracy ≤±2um
Z axis driver system Servo motor
Z axis travel length 50mm
Z axis automaticfocus distinguishing 1um
Positioning system CCD+MARK point positioning
CCD 1/ 2" gray CCD
Light Ring light
Support format DXF/ PLT
Storage Storage planning file
Visual positioning accuracy ±3μm
Data processing MicrolinePro
Power supply AC220VAC/+-15%/60HZ/25A
Condition New
Guarantee 1 year
Sample  Sample test available

1 Protective goggles

1 Power cable

1 data cable

1 tool kit

1 U disk

Machine
