Video LinkModel :LK-JMW
Power options : 200W/ 500W/1000W/ 1500W

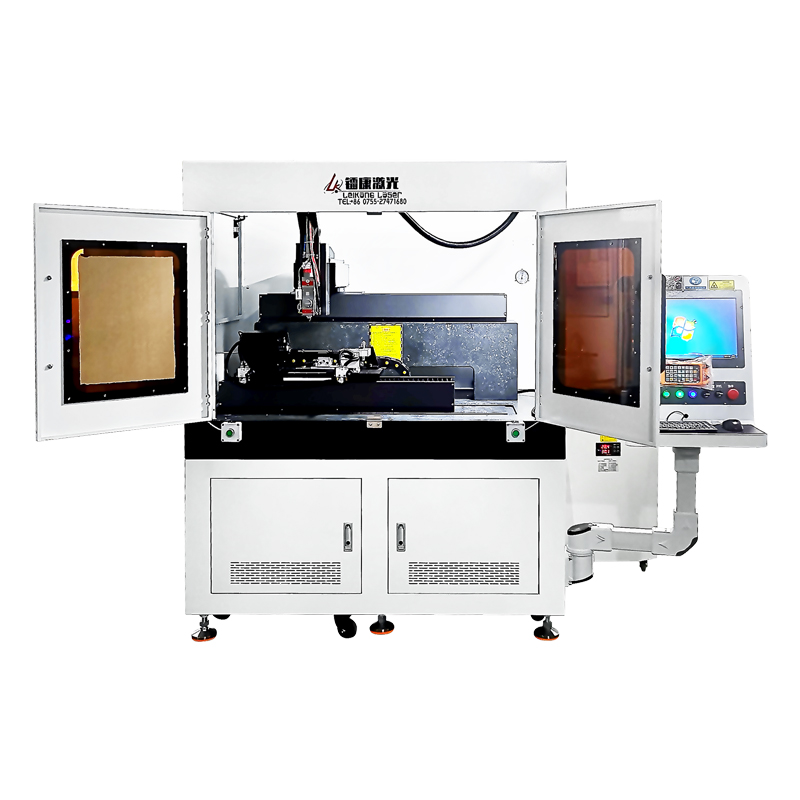

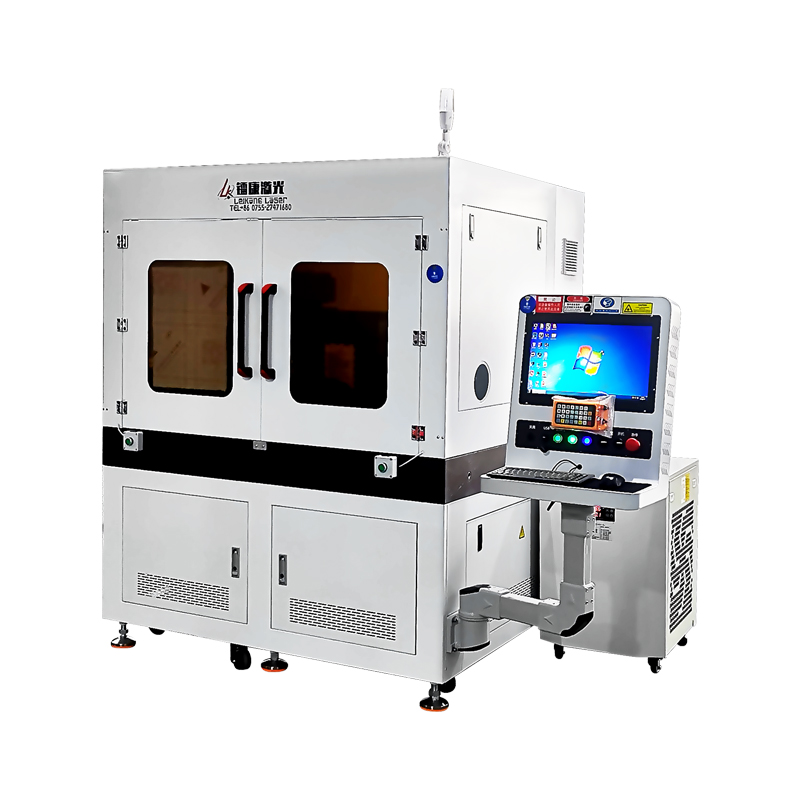

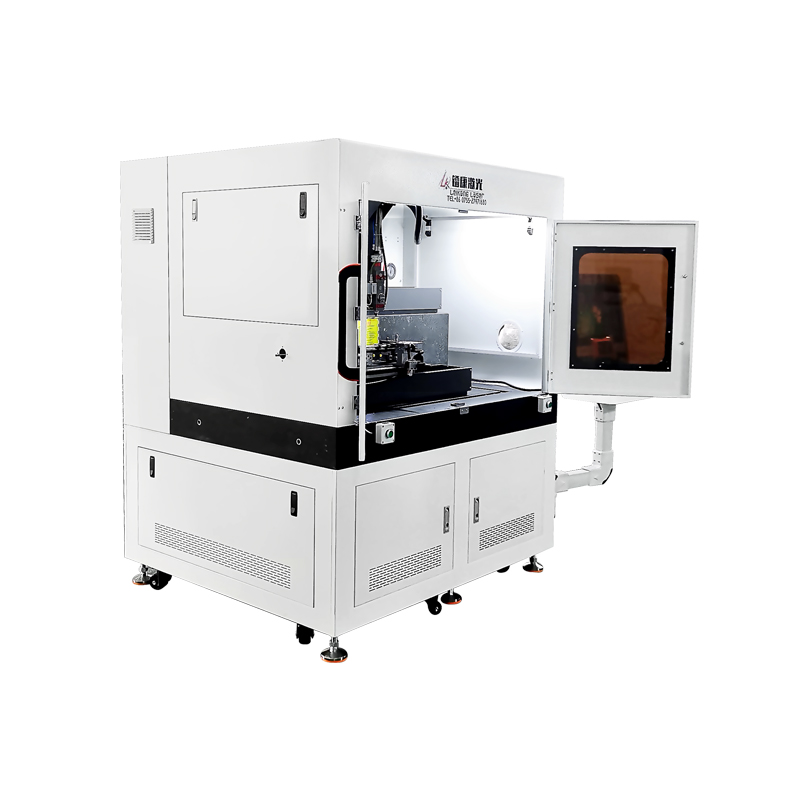

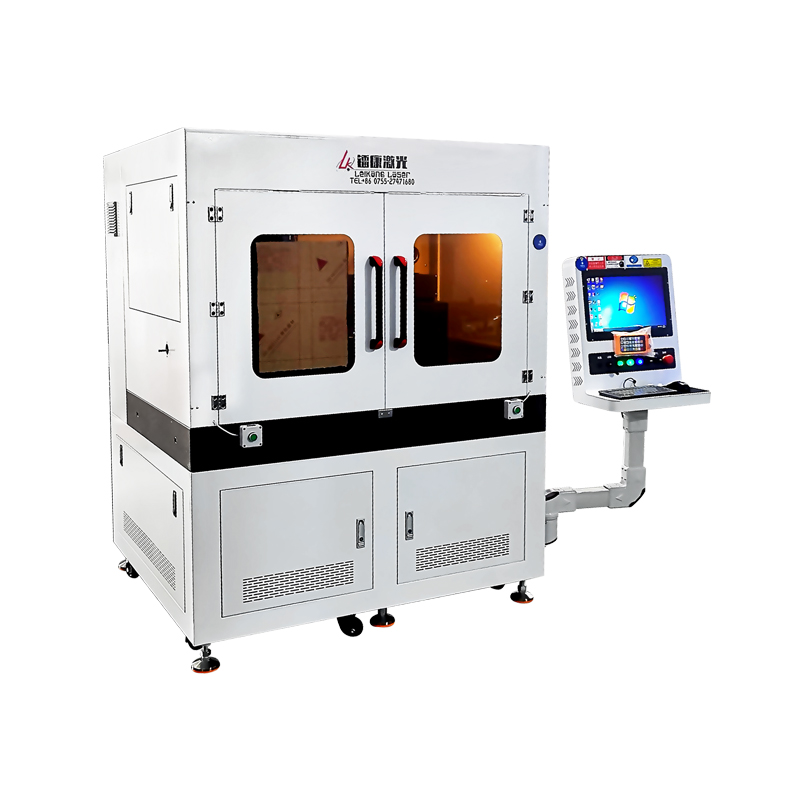

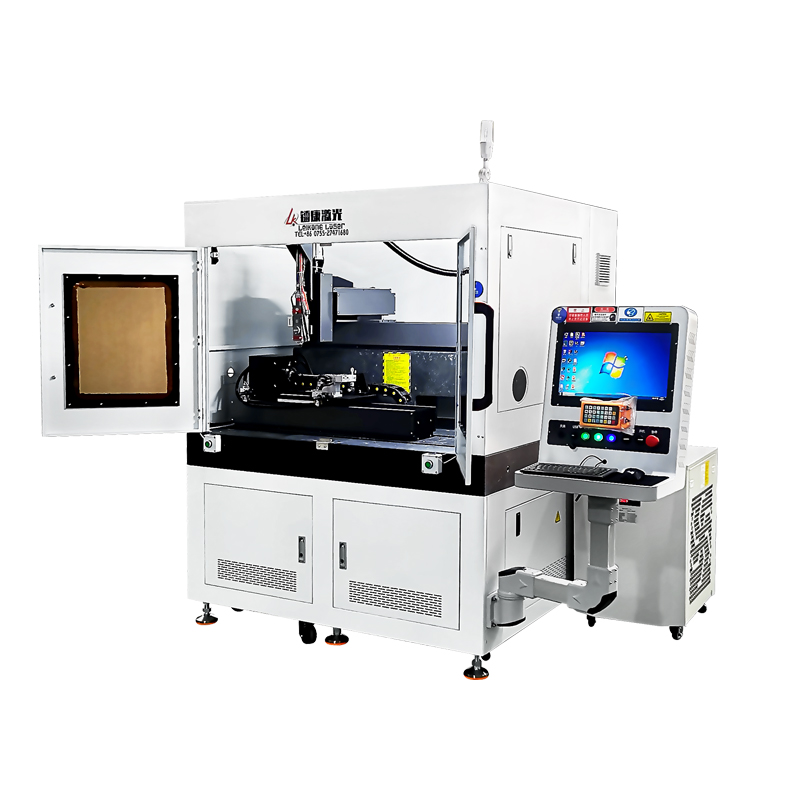

Machine with high precision cutting head with fine fiber beam to cutting micro-medical stent, needle, endoscopic, catheter, ultrosonic scalple
Automatic accuracy clean cut burrs free for cutting intricated and complex designs in medical tube
24 Month maintenance
Fast delivery
24 Hour treatment
Production video
Feature :
Machine provide high accuracy clean edge cutting on medical tube without burss, its adopt fine core beam laser source and precision cutting head with minimal thermal heat affected zones. high speed cutting and automatic capabilities to improve production efficiency
Key applications of medical tube cutting machine process
1.Cathether manufacturing
2. Stent production
3.Endoscopic fabrication
4. Needle or cannula and biopsy process
5. Hypotube cutting
6. Microfluidic pipe
7. Implantable device
8. Orthopedic Implants
|
Laser power |
1000W /1500W /2000W ...... |
|
Max.working speed |
300mm/s(X);100mm/s(Z),600rpm(θ) |
|
Precision |
± 5 um (X) ; ± 15 arcsec ( θ) ; ± 5 um (Z) |
|
Re-position |
± l um(X1); ± 3 arcsec(θ); ± l um(Z) |
|
Mini Width Of Cutting Slit |
20 um |
|
Consistency Of Cutting Slit |
± 5 um (3σ) |
|
Laser Type |
Fiber laser |
|
Frequency |
0~50KHz |
|
Laser Beam |
M2<1.1 |
|
Materials |
304，316L, nickel-titanium alloy, cobalt-base alloy, pure metals such as iron and magnesium alloy |
|
Thickness And Length |
0~1.0±0.01 mm 1/the length not limit |
|
Diamaters |
0.3-16±0.02 mm |
|
Dimensions |
1200mmx1 500mmx 1850mm |
|
N.G |
1500Kg |
|
1 Protective goggles |
1 Power cable |
|
1 data cable |
1 tool kit |
|
1 U disk |
Machine |
