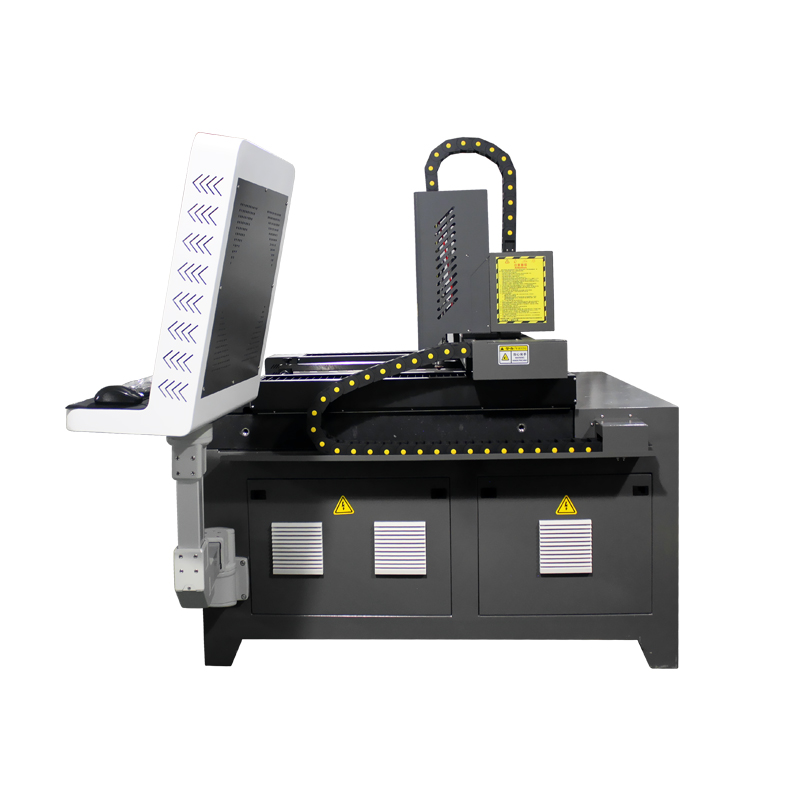

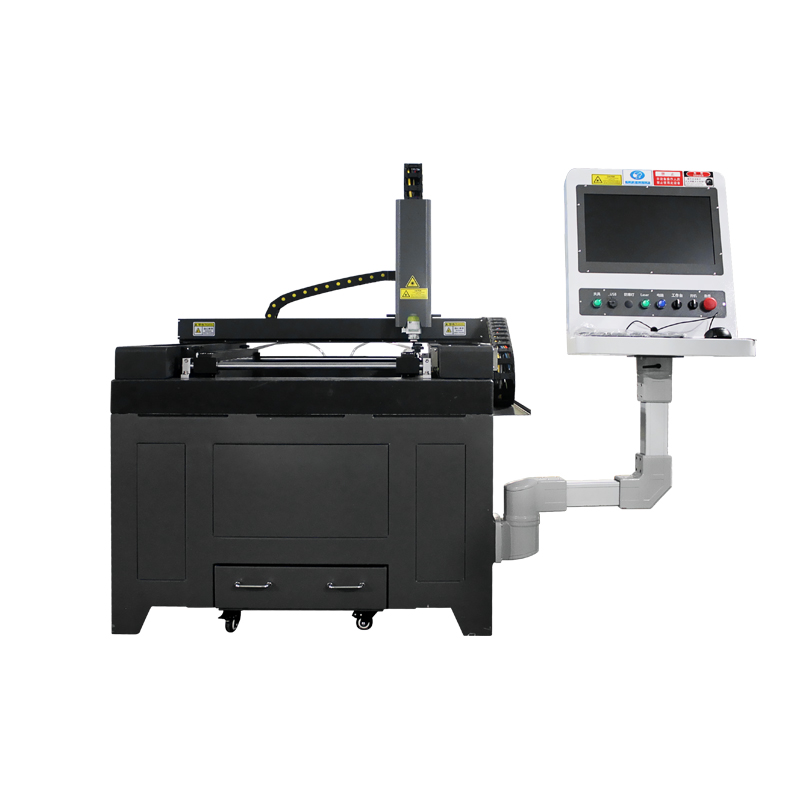

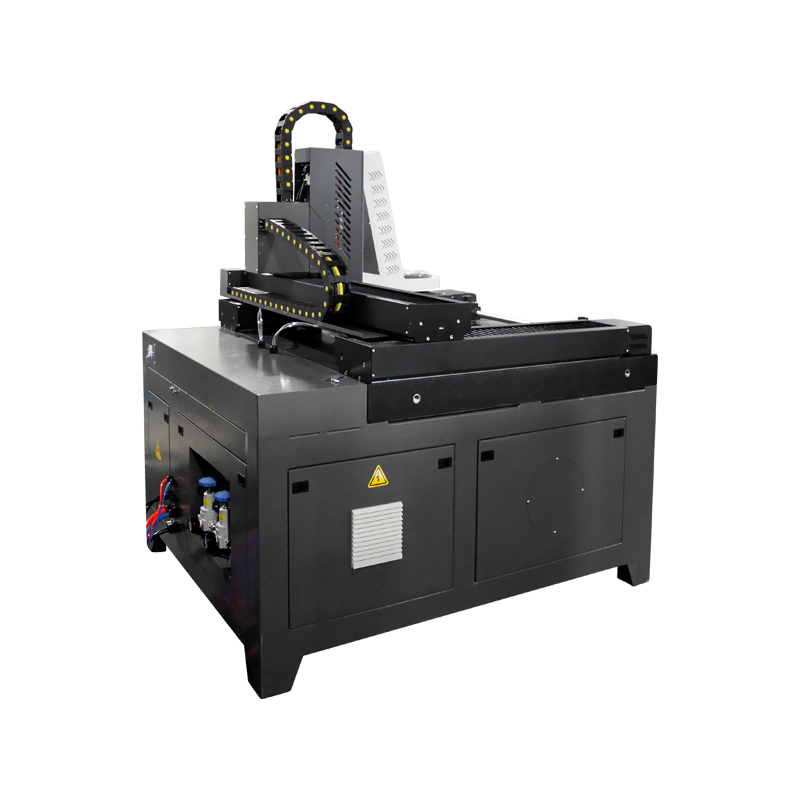

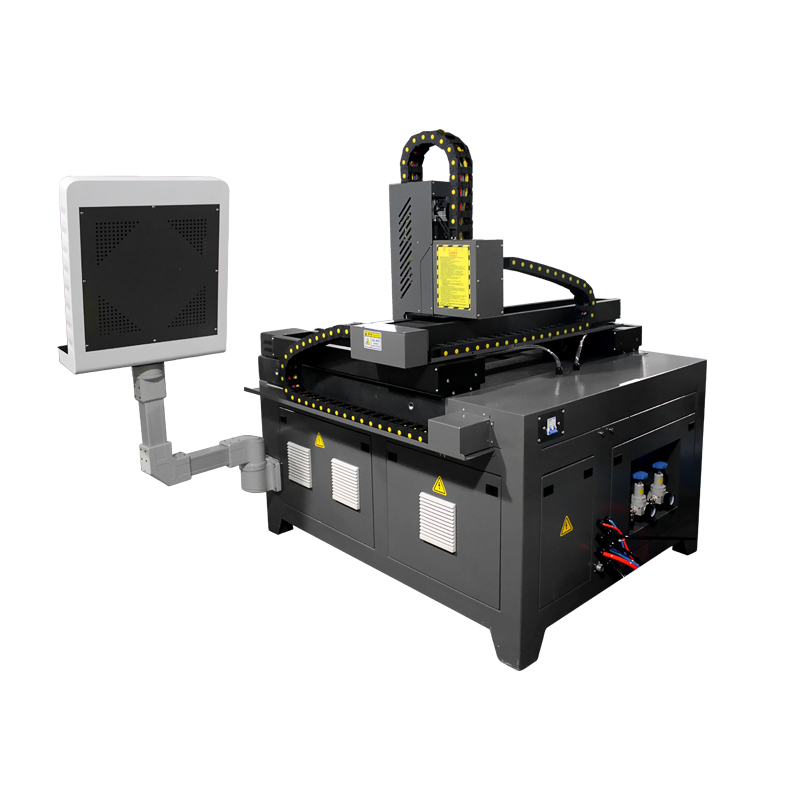

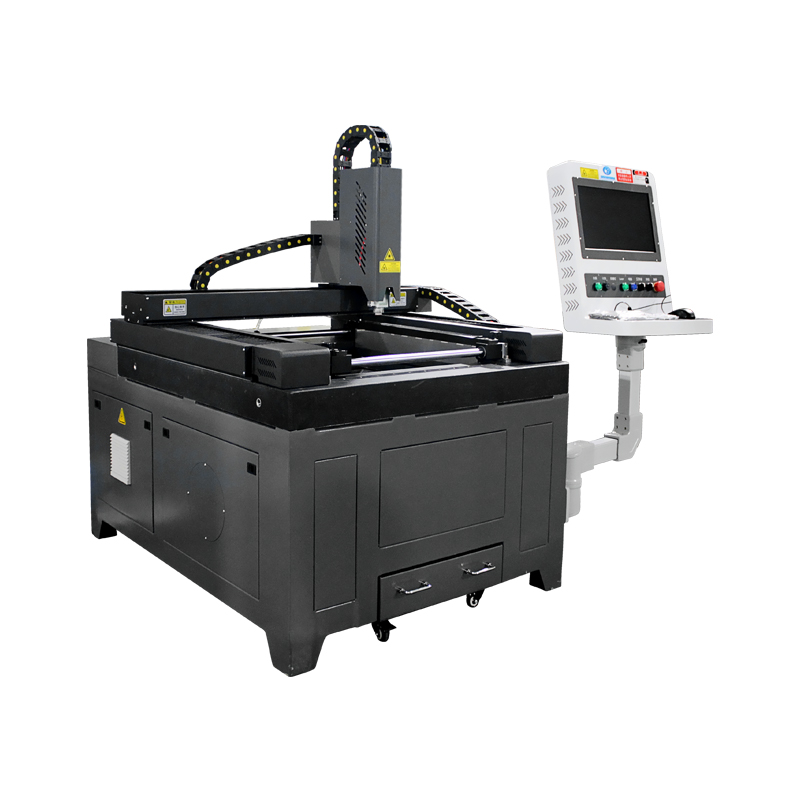

High Precision Laser Cutting Machine

Video LinkModel :LK-JWF

Power options : 500W/ 1000W/ 1500W/ 2000W/ 3000W/ 6000W
Machine with high precision cutting head with fine fiber beam to cutting thin metal plate which 0.02~6mm thickness
automatic control  high accuracy servo motor and system with programming cut

24 Month maintenance

Fast delivery

24 Hour treatment

Production video

Product Details

Description

Technician Specification

Packing List

fiber laser cutting equipment
6060 laser cutting machine
enclosed laser cutting machine price
mini laser cutting machine
autofocus laser cutting machine
1000W laser cutting machine
metal sheet laser cutting machine







Feature :

  • Fast cutting speeds and automation capabilities enhance production efficiency and throughput.
  • Minimual thermal heat affected while cutting metal plate ,preserving the material properites
  • Able to cut intricate and complex shapes or patterns

    1、Laser cutting machine working table structure is a square-through frame structure, which has been subjected to high temperature aging, with high precision and good shock resistance;

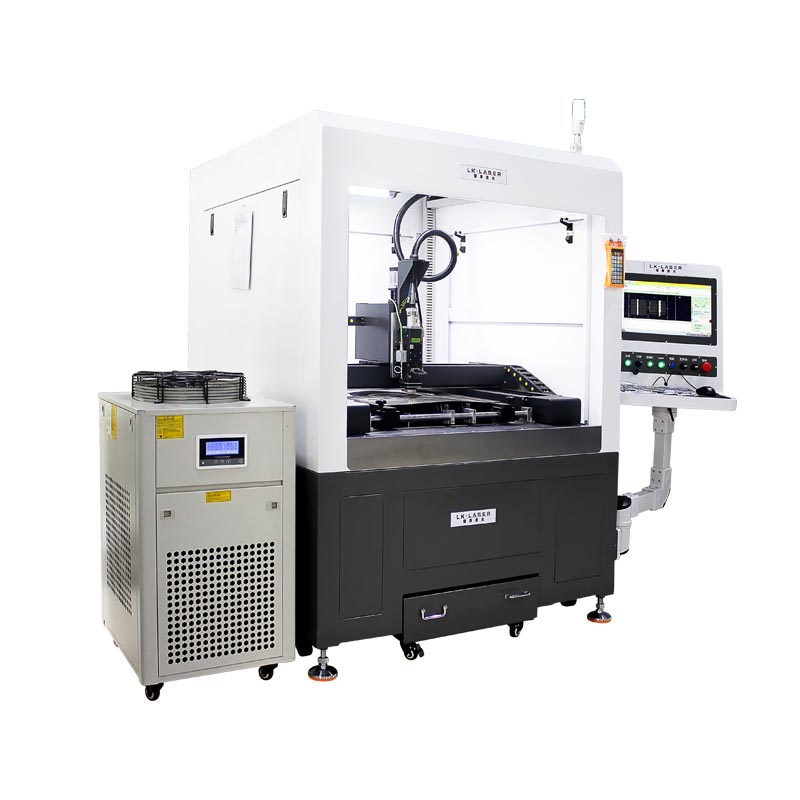

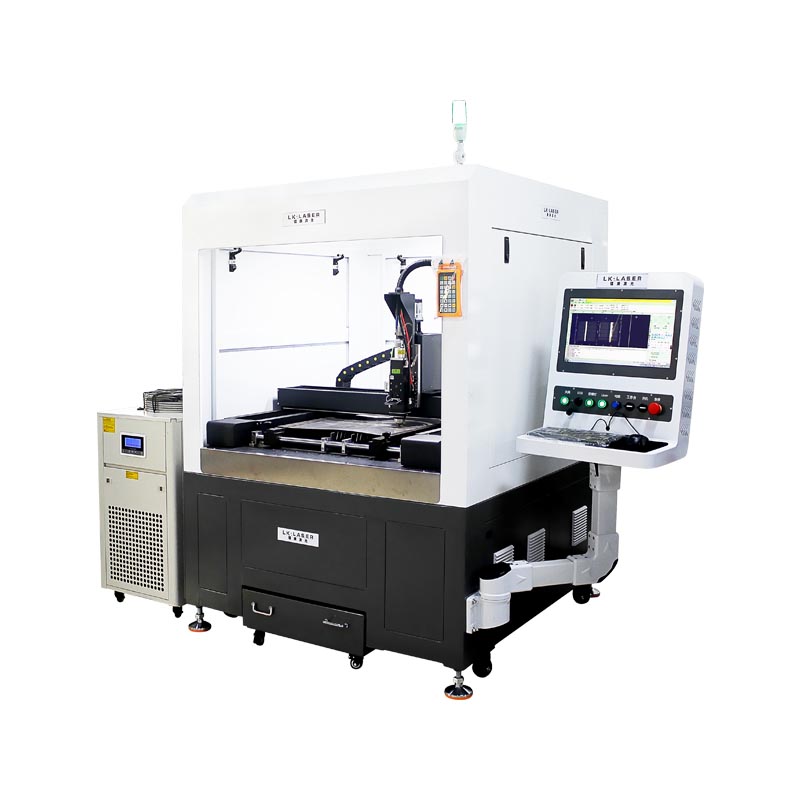

    2、Fully enclosed cabinet and servo motor platform, equipped with grating ruler, high cutting precision, fast speed and stable operation;
    3、Adopt Feibo/ Max/ Raycus/ Everfoton laser source with good laser beam  high cutting efficiency;
    4、The cutting head raytools has good cutting quality, fast speed, small cutting seam, smooth and bright cutting end surface;
    5、Using CYPCUT cutting software to import graphics files, the operation is simple and easy to use,
    6、Convenient for drawing and file processing: dxf files can be imported directly
    Application

    This equipment is widely used in cutting or drilling  precision hardware parts cutting machines, gold ,silver ,platinum processing, aluminum substrate copper substrate cutting, and aluminum oxide, aluminum nitrate, ........

XYZ laser cutting machine

Axis stroke

XYZ-600x600x90mm

High precision cutting head

Raytool

Z axis accuracy

±0.02mm

Position accuracy

±0.04mm

Max speed

30m/min

Repeat accuracy

±0.035mm

Maximum acceleration

0.2G

Laser power

≤2000W

Power adjustment range

5-95%

Laser wavelength

1070±5nm

Beam quality M2

<1.5

Minimum cut seam

0.05mm(reference)

Working method

CW

Cooling method

Water cooling

Cooling temperature

20-25℃

Cutting gas pressure

1.0-2.5MPa

Power

<12kw

Power supply

AC220V 50Hz 1Phase

Weight

1000Kg

1 Protective goggles

1 Power cable

1 data cable

1 tool kit

1 U disk

Machine
