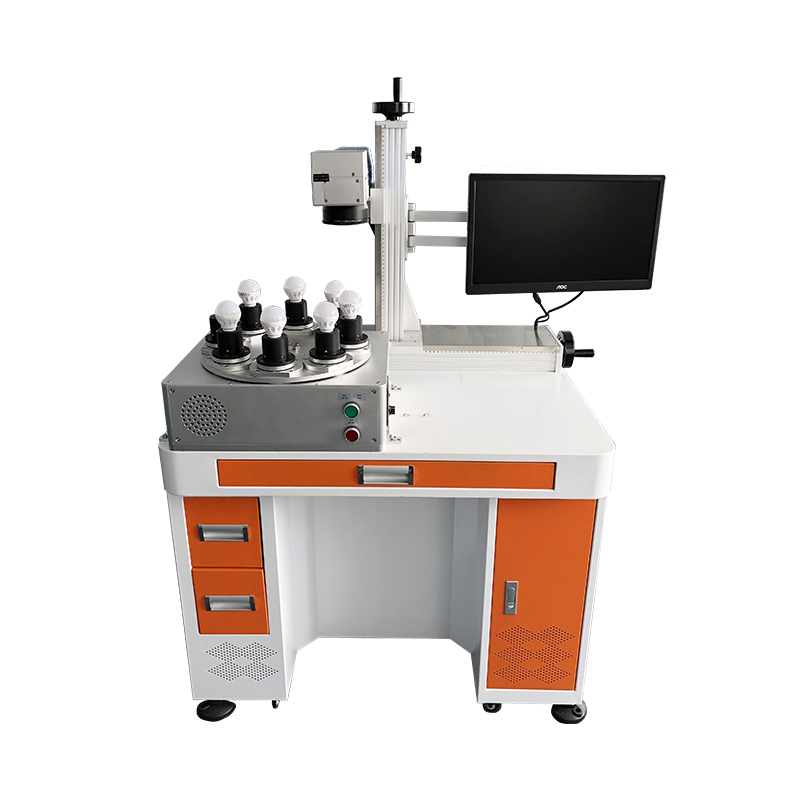

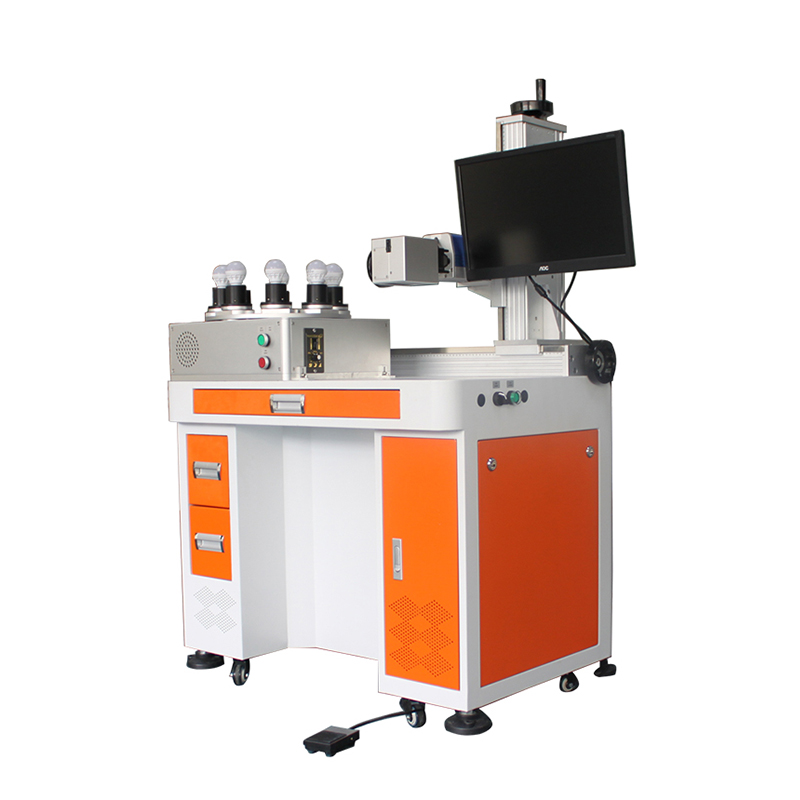

Model :LK-LB
Power options : 20W /30W /50W
Application Materials : Specially designed rotary table for LED bulb marking.
Product Advantages : Either marking on rotary table or plate table, for different marking application.
Movable X axis of marking shaft for flexible marking application
Adjustable marking head marking on bulb top or side
24 Month maintenance
Fast delivery
24 Hour treatment
Feature :
1.Rotary table

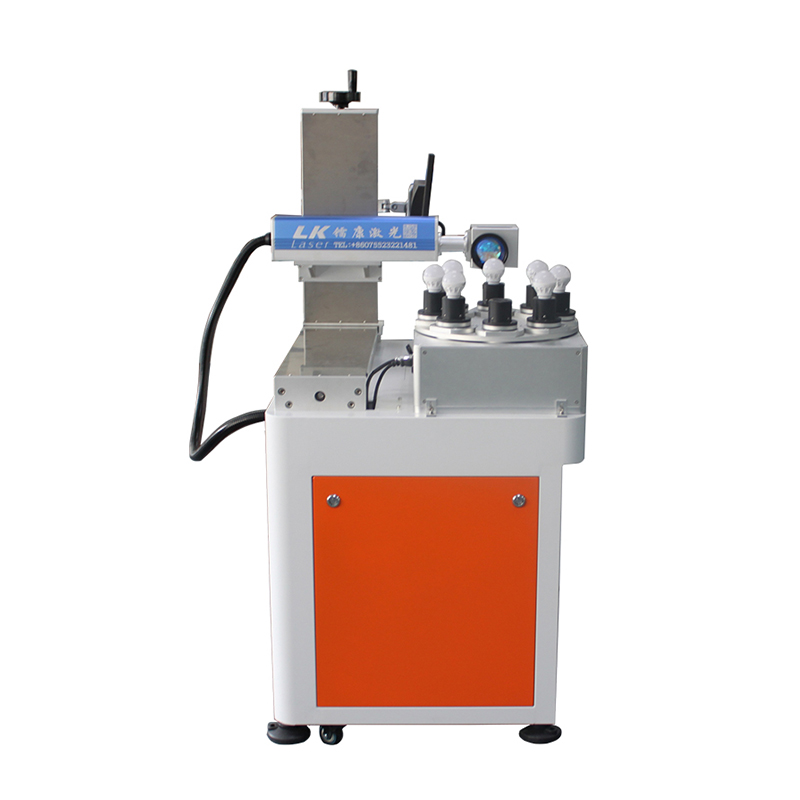

LED bulb laser marking machine with rotary table with 8 /12 /16 position which could loading the led bulb ,convenient and fast marking batches bulb to improve product efficiency
2.X &Z axis adjustable
X & Z marking axis manual adjustable focus distance ,its could suit for various diameter led bulb also could marking on other product , extensive marking applications
3.EZCAD marking software
The laser marking software runs on any Windows operation system, the vector image created by AutoCad and Coreldraw could be easily imported in DXF or PLT format, the software generates barcode, 2D code, serial number, date and time data, all windows fonts are supported.

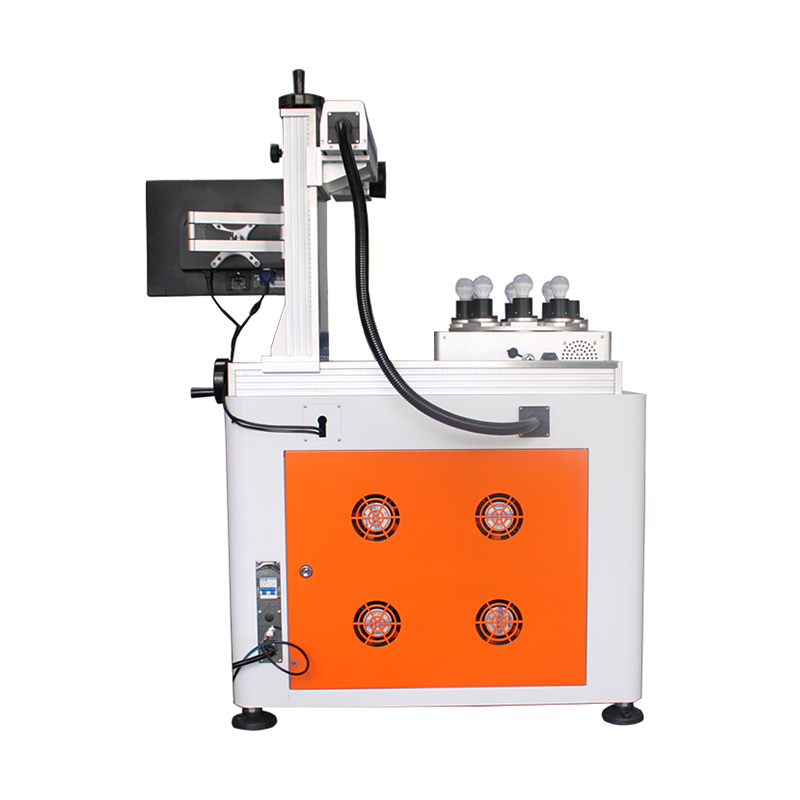

The up-to-date air cooling system ensures the low operating noise and adjustment of
operating temperature, supporting long working time
|
Laser power |
20W /30W/50W/ |
|
Laser Type |
Fiber laser |
|
Focus mode |
X axis &Z axis manual adjust up /down |
|
Effective working area |
70*70~300*300mm |
|
Marking depth |
0.01-1mm (adjustable according to material ) |
|
Line width |
0.01-0.05mm |
|
Marking Speed |
≤12000 mm/s |
|
Repeatability |
≤0.001mm |
|
Marking accuracy |
≤0.001mm |
|
Marking software |
EZCAD2 |
|
Marking content |
Image processing,Common vector images are supported. (ai, dxf, dst, plt…) Common types of images are supported. (bmp, jpg, gif, tga, png, tif…) Serial number , QR code, Bar code ....... |
|
Machine size |
1120*900*1380mm |
|
Package size |
1200*960*1580mm |
|
Machine net weight |
120KGS |
|
Machine gross weight |
140KGS |
|
4 Mounting screw |
2 Positioning strip |
|
1 Protective goggles |
1 Pedal |
|
1 Ruler |
1 tool kit |
|
1 U disk |
1 box aluminum plate |
|
1 Power cable |
Machine |
