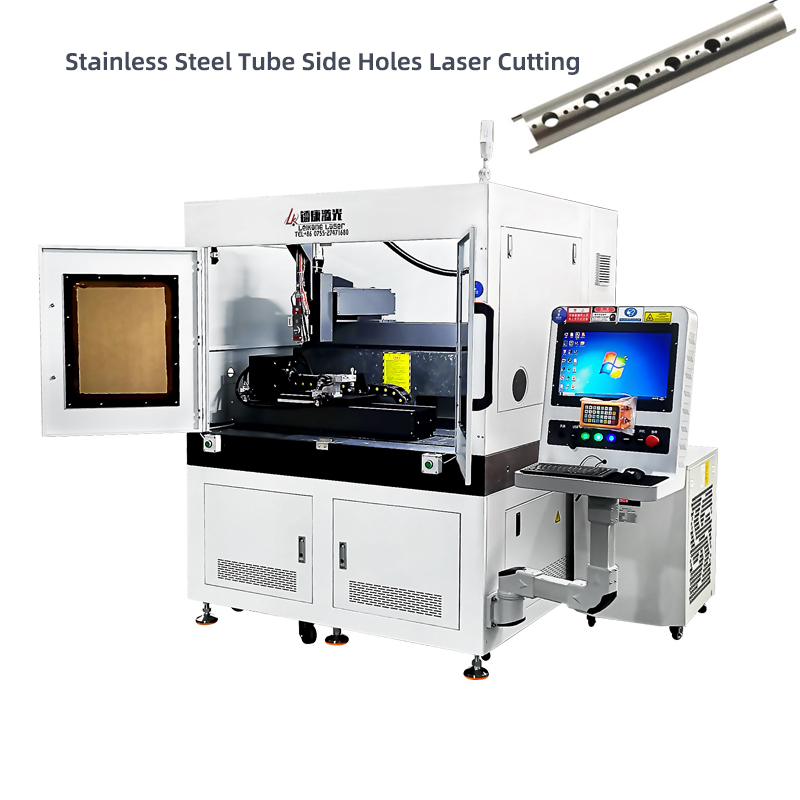

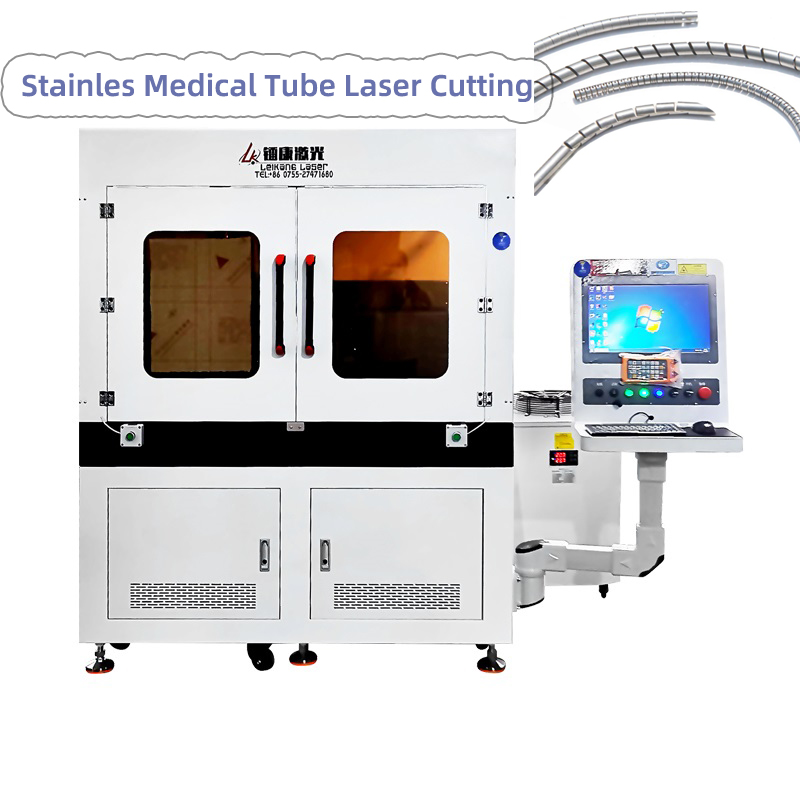

Medical Tube Laser Cutting Machine

Video LinkModel :LK-JMW

Power options : 200W/ 500W

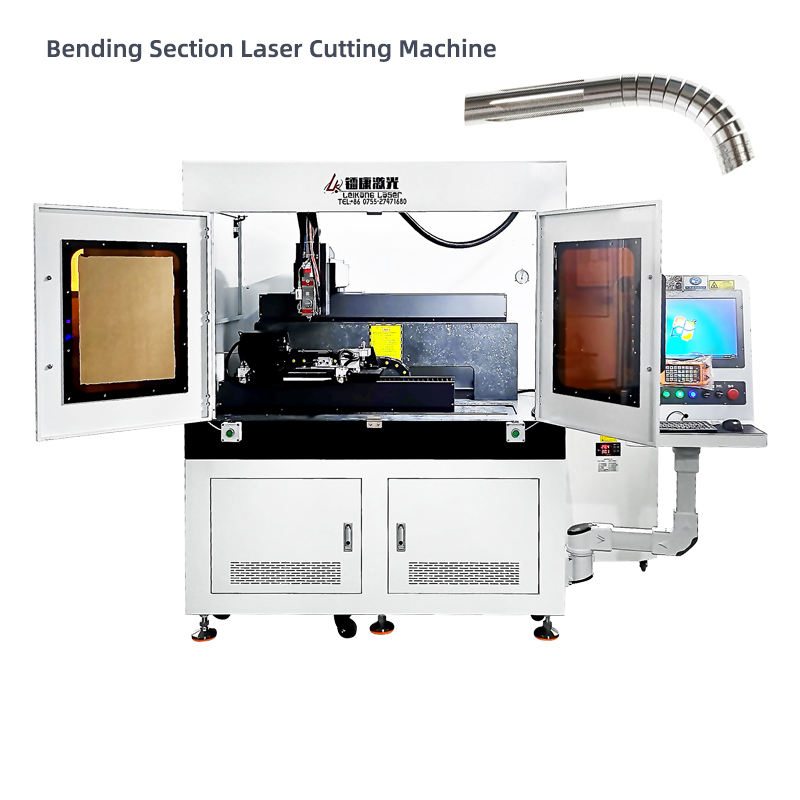

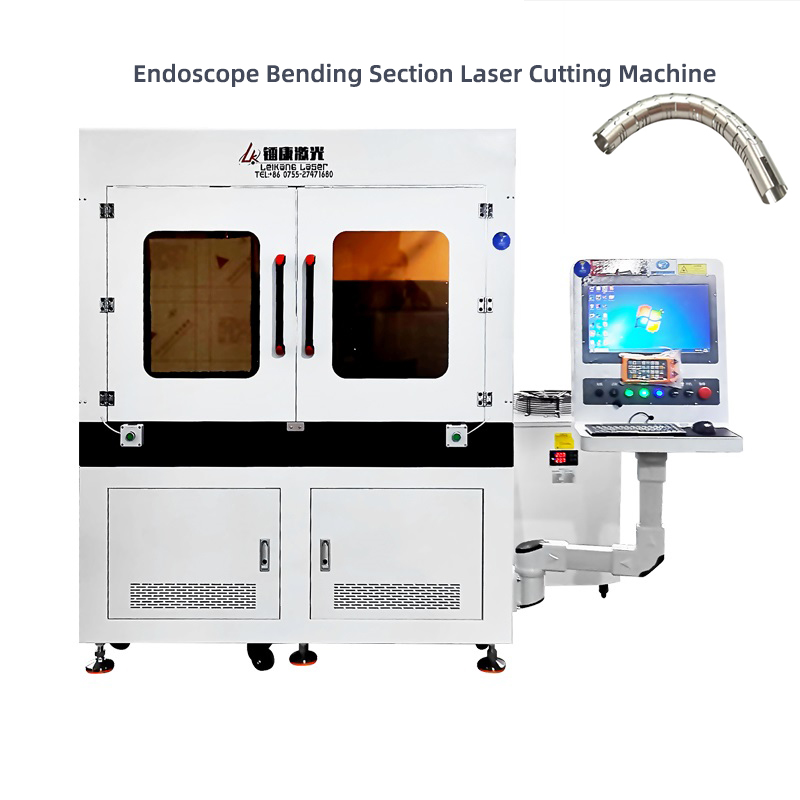

Stainless steel Tube Alloy Tube Spiral Cut Medical Tube , Bending Section, Endoscopic ,Stent
It’s incredibly easy to operate, provides perfect cuts, and the enclosed system keeps the work area tidy and safe.

24 Month maintenance

Fast delivery

24 Hour treatment

Production video

Product Details

Description

Technician Specification

Packing List

Advantage
·Support cutting complex design: machine adopt high-precision cutting and pipe support structure to ensure the consistency of relative processing position and support rib width, and can cut complex shapes

·Clean Cuts: non-contact cutting process of laser cutting optimize kerf surface clean edges without burrs,

·Versatility: Capable of cutting a wide range of metal materail such as stainless steel, platinum tube, Ni-ti tube........

·Minimal Thermal Damage: Laser cutting minimizes heat-affected zones, preserving the integrity and proformace of the thin wall pipe materials.

·High Speed and Efficiency: High cutting speeds and automation capabilities enhance production efficiency and reduce cutting times

Application Range:

Used in cut manufacturing of catheter stent, endoscopic Instruments, needle, hypotube, ultrasonic scalpel, breast cannula, flexible pipe cutting, Implant pipe......with different wall thickness and diamete
medical pipe cut

Feature :

Direct Drive Motors was high-precision motors used for controlling position and speed with minimal pipe with high quality cutting and high torque, smooth rotation, and minimal vibrations
Direct driver motor of laser cutting

Tubepro laser software & Cypcut laser software

TubePro is a tube and pipe cutting system designed to integrate with laser cutting technology for highly efficient cutting of tubes and pipes made from various materials, including steel, stainless steel, aluminum, and more. It is especially popular in industries such as automotive, aerospace, construction, and furniture manufacturing.

CypCut is an advanced laser cutting system developed by CypLaser that is widely used for both metal sheet and tube cutting. It’s known for its high performance, user-friendly interface, and cost-effectiveness in cutting complex shapes and geometries.

Enclosed cabinet safety buzzer interlock machine - It offers exceptional precision and clean cuts every time. The enclosed design also ensures safety and minimizes debris, making it a perfect fit for cut facility. Highly recommended

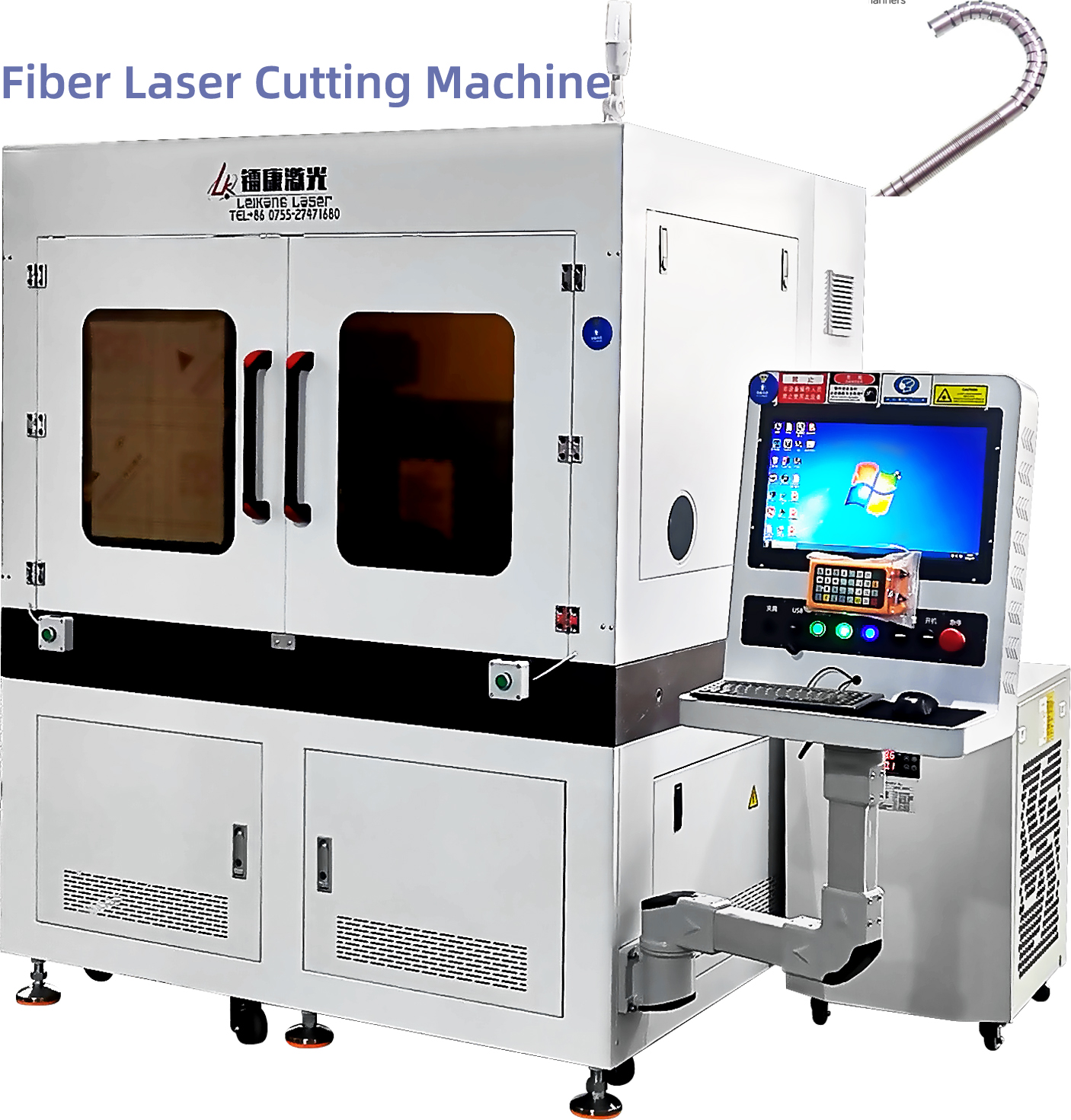

Enclosed laser cutting machine

Not sure about the quality? We can help to make prototype cut

Laser power	1000W /1500W /2000W ......
Max.working speed	300mm/s(X);100mm/s(Z),600rpm(θ)
Precision	± 5 um (X) ; ± 15 arcsec ( θ) ; ± 5 um (Z)
Re-position	± l um(X1); ± 3 arcsec(θ); ± l um(Z)
Mini Width Of Cutting Slit	20 um
Consistency Of Cutting Slit	± 5 um (3σ)
Laser Type	Fiber laser
Frequency	0~50KHz
Laser Beam	M2<1.1
Materials	304，316L, nickel-titanium alloy, cobalt-base alloy, pure metals such as iron and magnesium alloy
Thickness And Length	0~1.0±0.01 mm 1/the length not limit
Diamaters	0.3-16±0.02 mm
Dimensions	1200mmx1 500mmx 1850mm
N.G	1500Kg

1 Protective goggles	1 Power cable
1 data cable	1 tool kit
1 U disk	Machine
