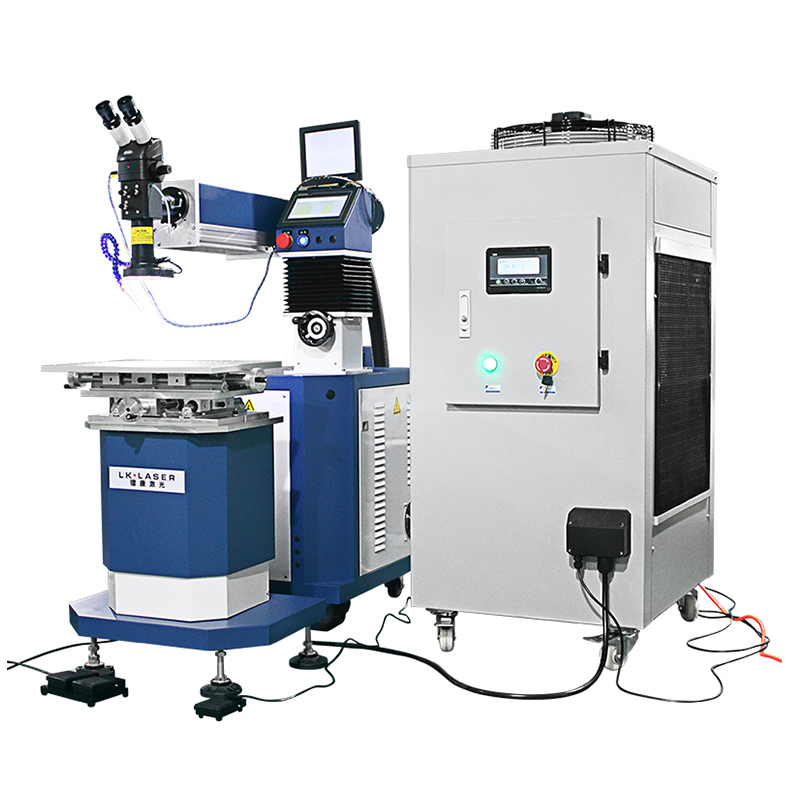

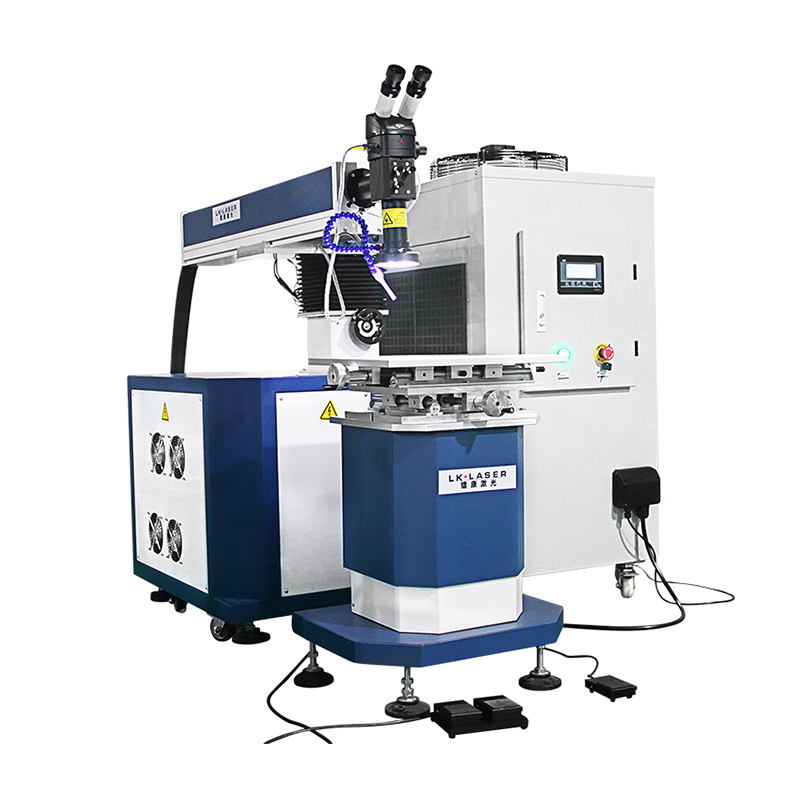

Video LinkModel :LK-MW
Power options :200W/300W/400W
Machine could welding material: gold ,silver, aluminum , platinum ,copper.....
specially used for spot welding, perforating, repairing, re- tipping and re-sizing of gold/silver/titanium jewelry and small accessories. etc.
24 Month maintenance
Fast delivery
24 Hour treatment
Feature :
1.Machine system
Adopt HD -CCD colorful visual system & LCD screen ,which optional for our customer.software is available in Chinese and English versions, and the language type can be arbitrarily specified.
2.High quality cavity
Adopted UK imported ceramic condenser cavity, corrosion resistance, high-temperature resistance, long service life.The laser power feedback control system to ensure the stability of laser energy output.
3.Working table
Electric lifting for the working table,fixed focus more quickly.X/Y platform design sports flexible, able to complete a one-time combination welding curves, straight, single-point and other complex processes.
4.Joystick & LCD screen control
Machine could adjust the welding parameter via inside worktable joystick and outside LCD screen
Easy to operation and multi-function which meet different working request|
Model |
LK-MW |
|
Max. Laser Power |
200W/300W/400W |
|
Laser Type |
YAG |
|
Laser Wavelength |
1064um |
|
(Pulse-Width (ms ) |
0.5ms-20ms |
|
Pulse Energy |
100J/120J |
|
Pulse Frequency |
0-50HZ |
|
Laser Welding Depth |
0.1mm-2mm |
|
Spotlight Cavity Reflector |
Metal Cavity |
|
Sighting Positioning System |
Red light ,HD-CCD camera |
|
Aim Operation |
Round Point Cursor |
|
Adjusting range of light spot |
0.6-3.0mm |
|
Cooling system |
Built-in Water cooling |
|
Integrity Power |
5.5kw~8KW |
|
Power Supply |
AC220VAC+-15%/50HZ/25A |
|
Lifetime |
3,000,000 times |
|
Machine size |
Machine:1320*750*1150mm |
|
Package size |
Machine:1420*810*1380 chiller:740*570*1130mm |
|
Machine net weight |
Machine :230kgs chiller :85kgs |
|
Machine gross weight |
Machine :242kgs chiller :92kgs |
|
1 pcs goggles |
3pcs protective lends |
|
1 pcs water cable |
1 pcs gas cable |
