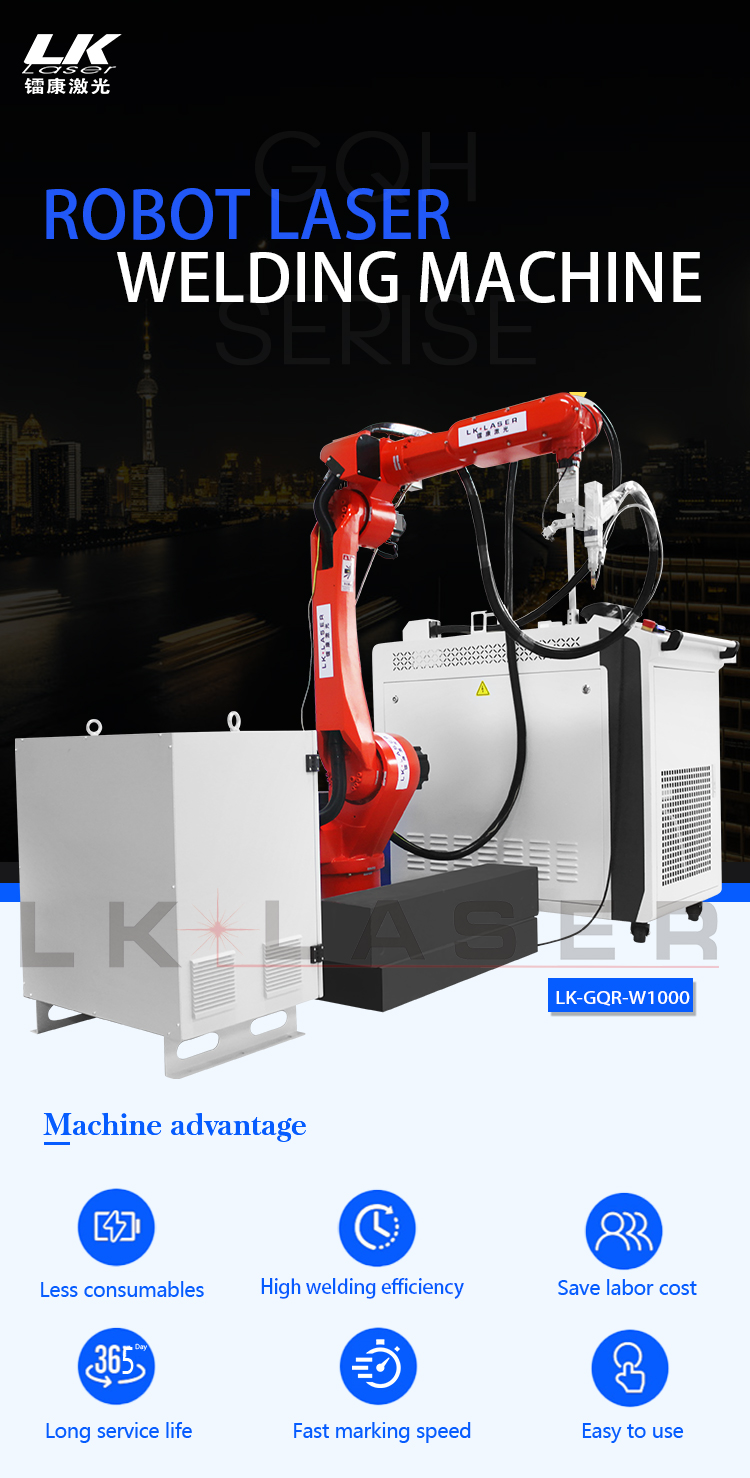

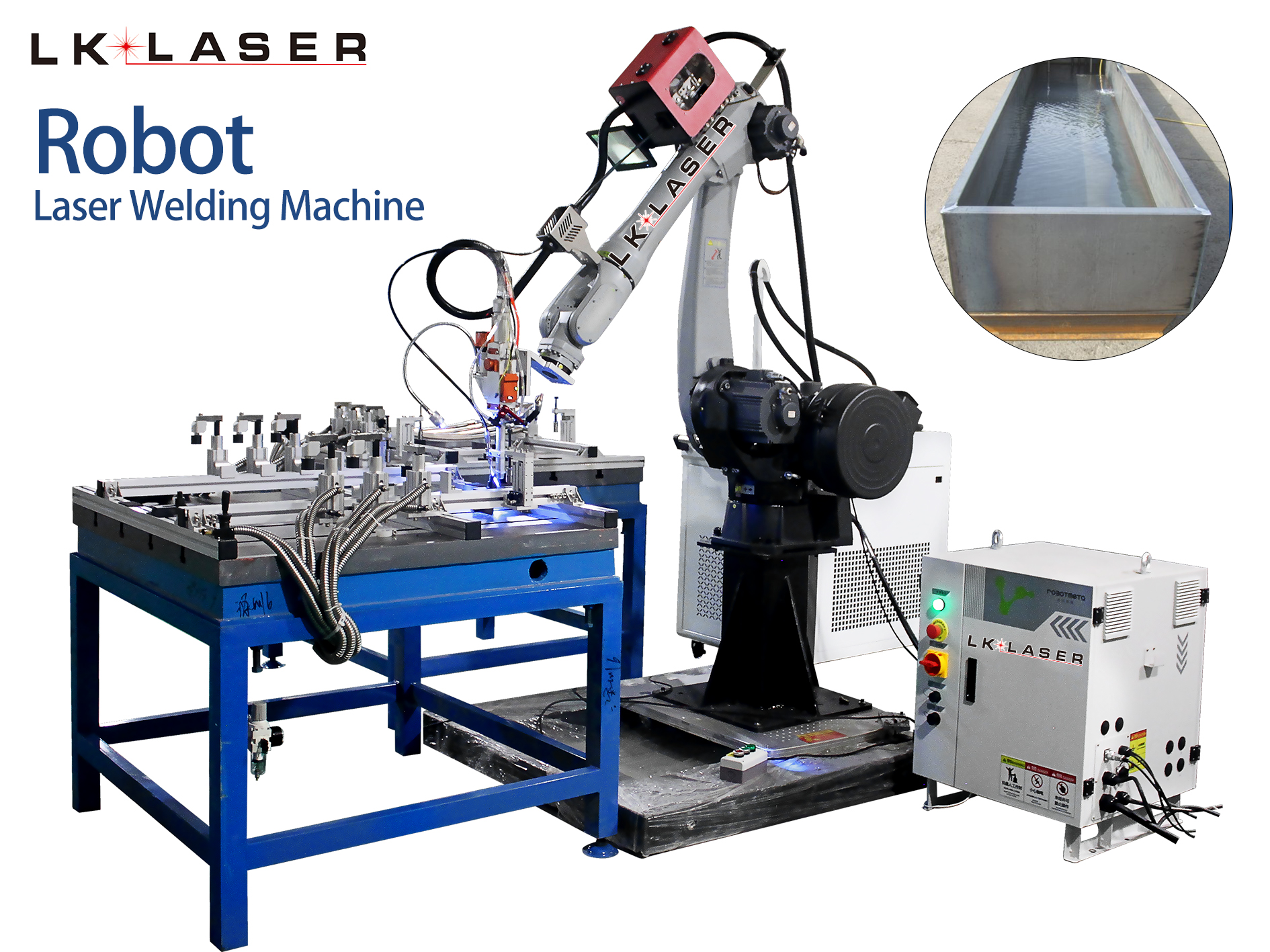

Robotic laser welding machine

Robotic Fiber Laser Welding Workstation

Model:LK-GQW

Power Options: 1000W/1500W/2000W/3000W/4000W/6000W

The machine can weld materials: metal, aluminum, stainless steel, cooper, titanium........

Lightweight shape, ergonomic design, advanced structure and reliable performance

High Performance Harmonic Reducer

24 Month maintenance

Fast delivery

24 Hour treatment

Product Details

Description

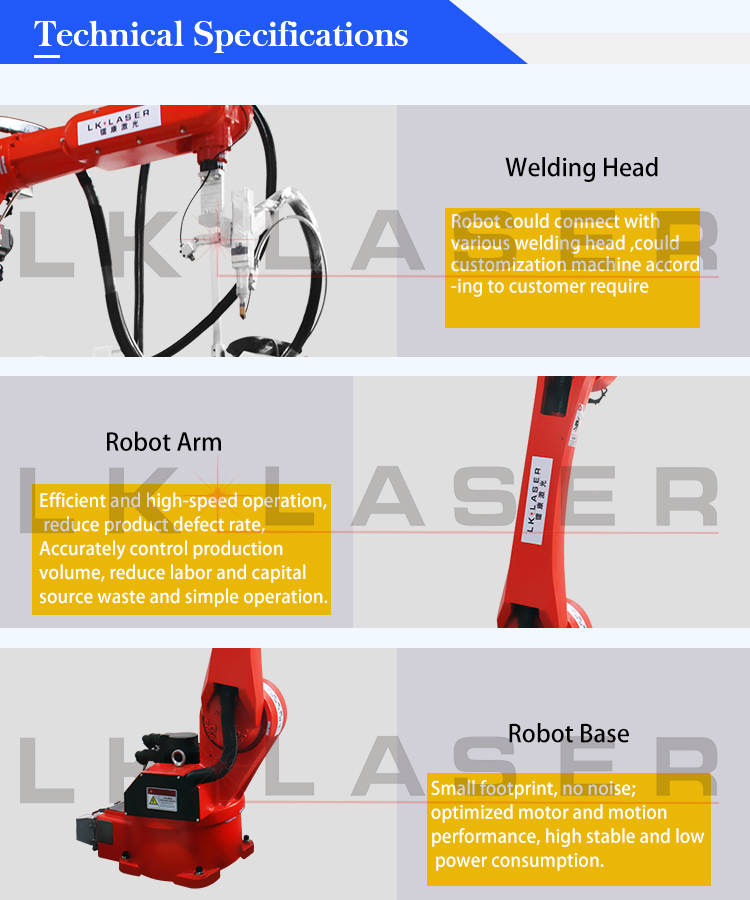

Technician Specification

Packing List

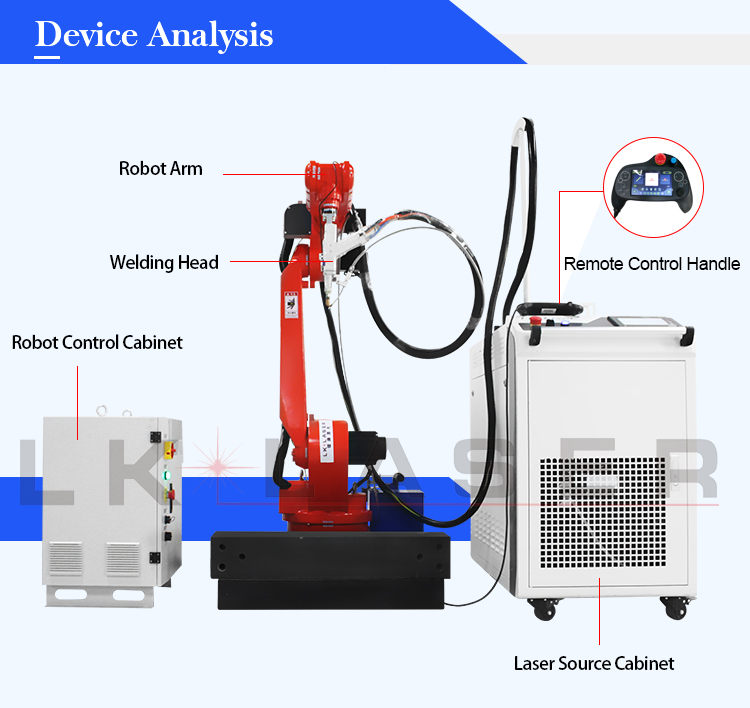

6‑Axis Robotic Fiber Laser Welding System

Robot : 6 axis 2meter FANUC /KUKA/ ABB/ YASKAWA /CRP/ ESTUN /INOVANCE brand

· with remote handle & electric box

· Loading weight :10kgs

· Repeated accuracy ±0.08 mm

· Positional accuracy ±0.01 mm

· Xiaoniu fabricated structure with red powder coated finish.

· Metal plate with marble base for easy position.

· Safety gating Interlock

· Voltage :AC220V 50Hz

· Frequency tolerance:±5%

· Weight estimate 235kgs

Motion range (OR subject project details )

J1 axis ± 170°, max speed: 190°/s

J2 axis +80~150°, max speed: 140°/s

J3 axis+85~-90 °, max speed: 140°/s

J4axis ±180°, max speed: 320°/s

J5axis+130°~105°, max speed: 150°/s

J6 axis ±350°. max speed: 320°/s

Machine advantage
High welding precision and stable weld quality
The 6‑axis robot delivers high repeat positioning accuracy. Laser welding features low heat input, resulting in narrow weld seams and minimal deformation. For mass production, consistent welding performance is achieved for every workpiece, eliminating human‑caused variations in manual welding.

Capable of welding complex spatial trajectories

The 6‑axis robotic arm provides high degrees of freedom. It can weld curved surfaces, corners, special‑shaped workpieces and inner dead corners, completing multi‑angle complex welds which are difficult for ordinary handheld welding machines.

Ideal for high‑volume automated production with high efficiency

It supports 24‑hour continuous operation and does not require continuous manual holding by welders. Once programmed, the program can run repeatedly to greatly boost production capacity and reduce reliance on skilled welders.

Lower labor cost and improved working conditions

Welders are less exposed to strong arc light, welding fumes and high‑temperature heat. It can be equipped with dust collectors and safety enclosures to improve workshop environment and ease the difficulty of recruiting skilled welders.

High flexibility for easy product change‑over

Different workpieces can be processed simply by re‑teaching or reprogramming without extensive fixture modification. It suits mixed‑mode production covering multi‑variety, small‑batch and large‑batch orders.

Low welding deformation and less post‑processing work

As a high‑energy‑beam welding process, laser welding creates a small heat‑affected zone. Workpiece deformation is slight, which greatly reduces post‑weld workload such as grinding and correction, saving time for subsequent procedures.

Compatible with production lines for integrated automation

It can work in conjunction with loading/unloading fixtures, positioners, assembly lines and PLC control systems to integrate into full automatic production lines and realize unmanned welding workstation operation.

Attractive weld appearance and reliable air‑tightness

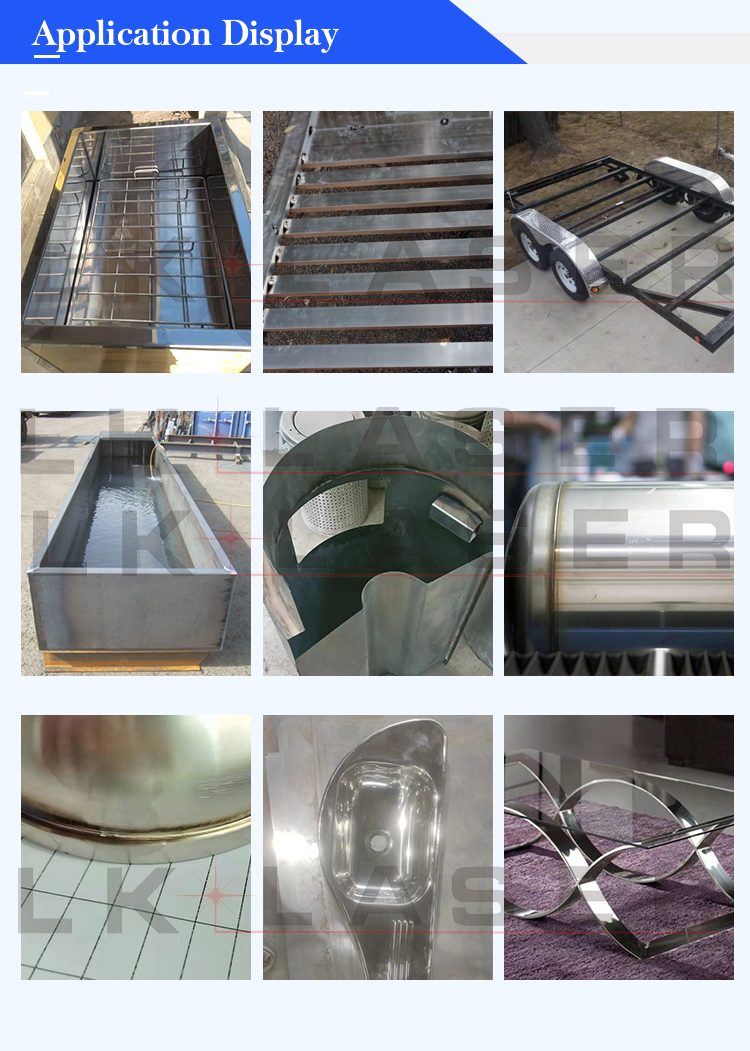

It produces smooth weld formation with reduced porosity and cracks. It is suitable for pressure vessels, hardware, auto parts, sheet‑metal components, medical accessories and other workpieces with strict requirements on sealing and appearance.

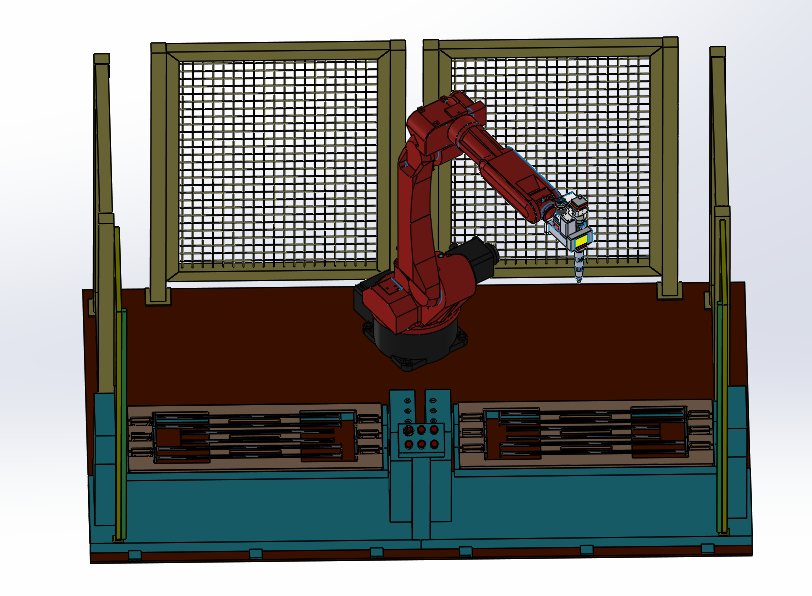

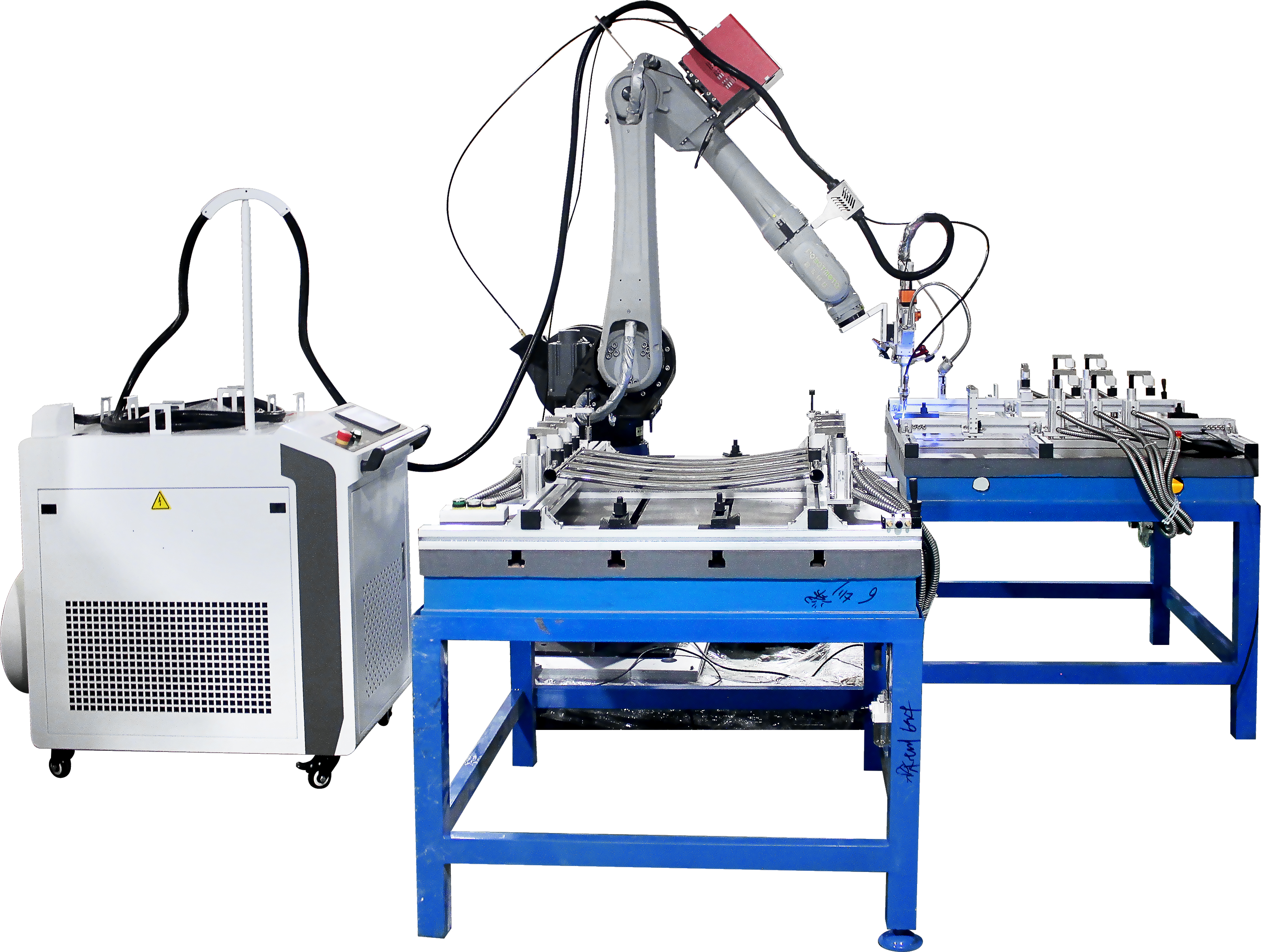

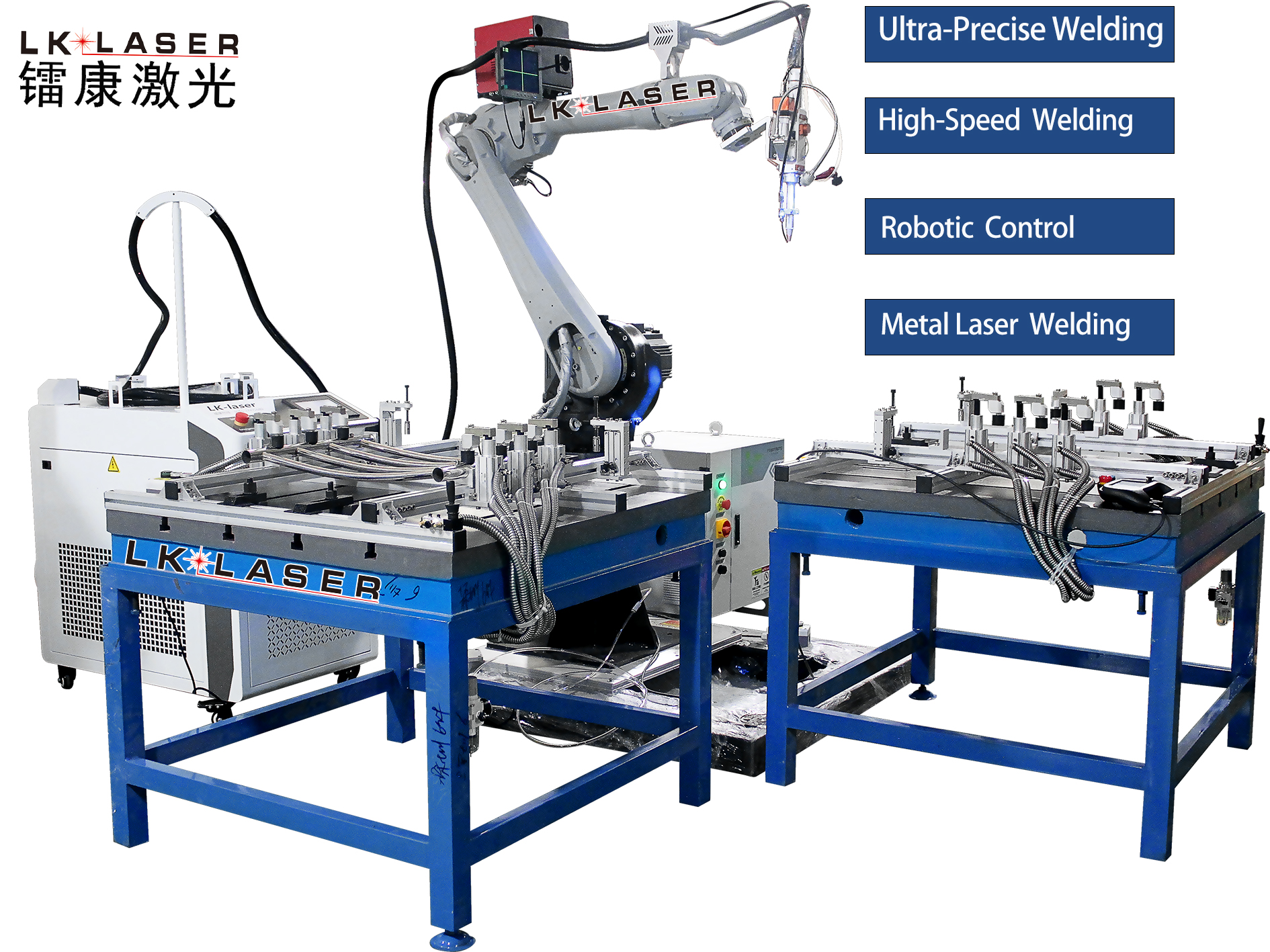

Double station laser welding machine

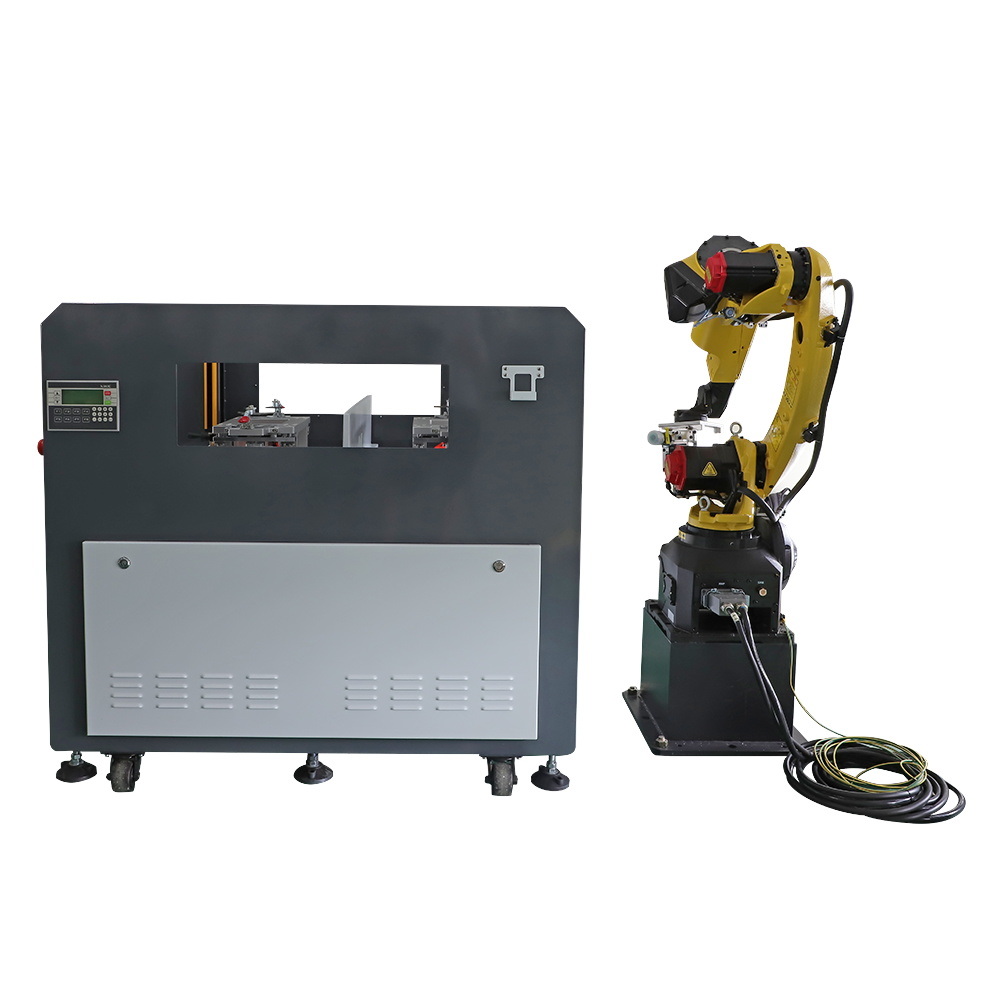

Custom Robotic Laser Welding Machine

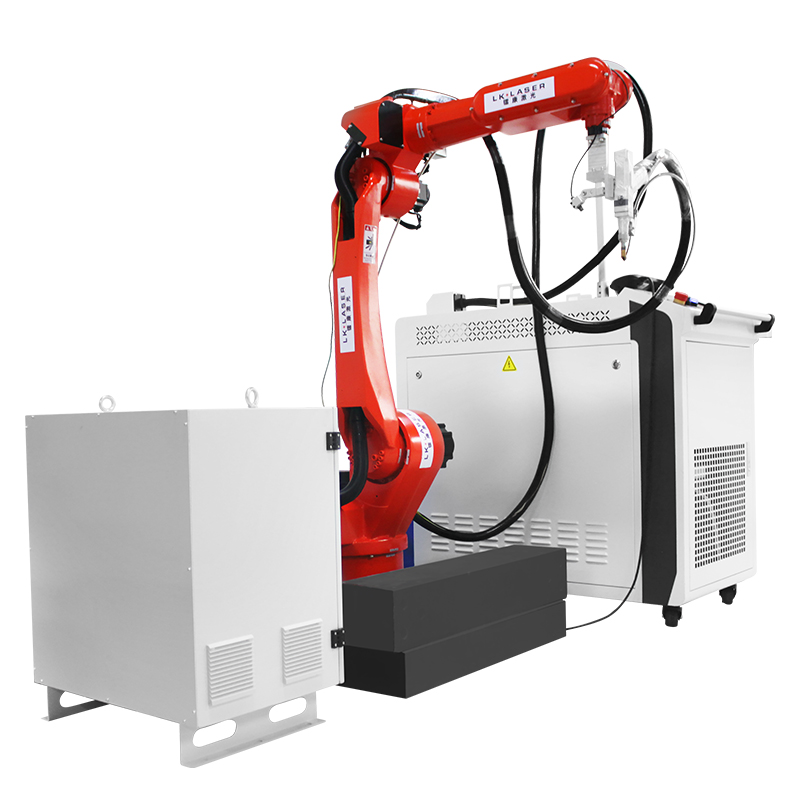

Custom‑built Robotic Laser Welding System

Laser power	1500W/2000W/3000W/6000W/8000W/10000W/ 12000W
Laser Type	Fiber Laser
Focus mode	Manual /automatic
Axis	6 axis
Welding head	LK Laser
Cooling system	Water cooling
Laser control	LCD touch control panel
Viewing camera	CCD camera with 7inch display
Working station	safty gating & protective grid
Working station	AB working station with special design pneumatic fixture

1 foot switch	1 USB disk
1 safety googles	1 Tookkits
Machine	Manual
