Model :LK-GQH
Power options :200W/300W/400W/500W/600W

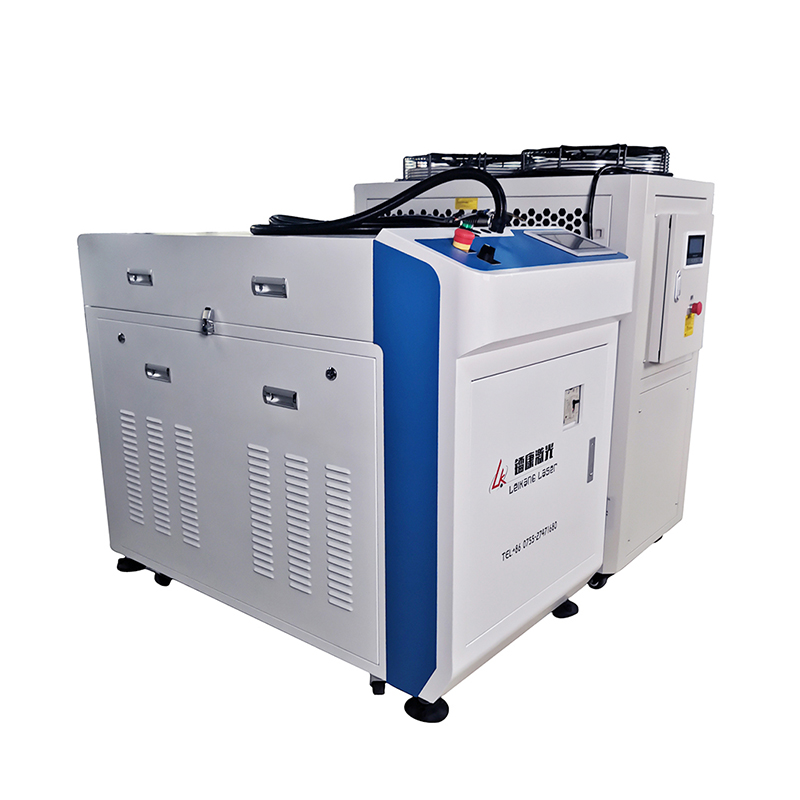

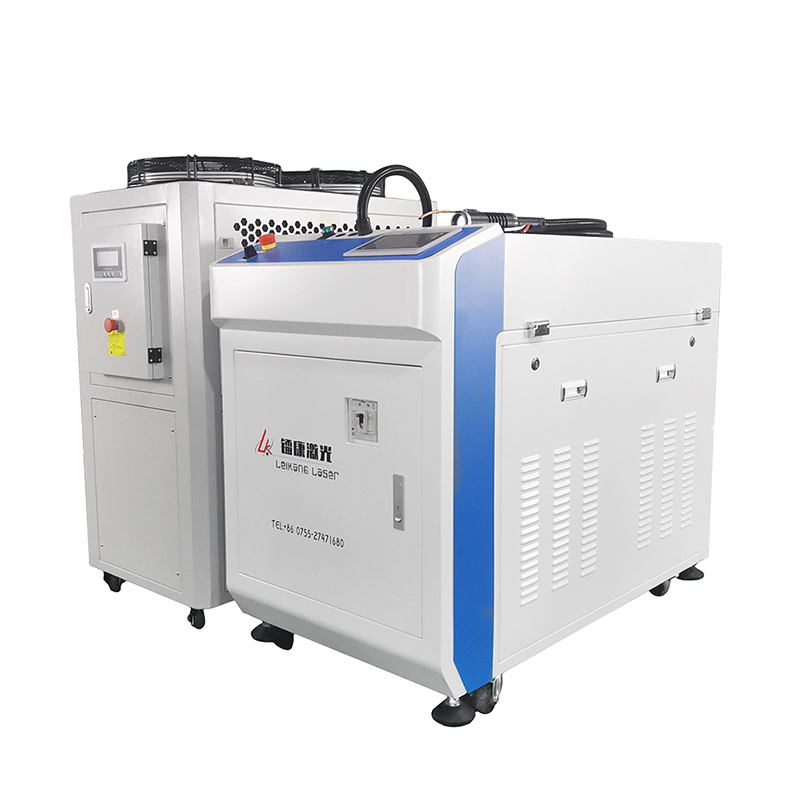

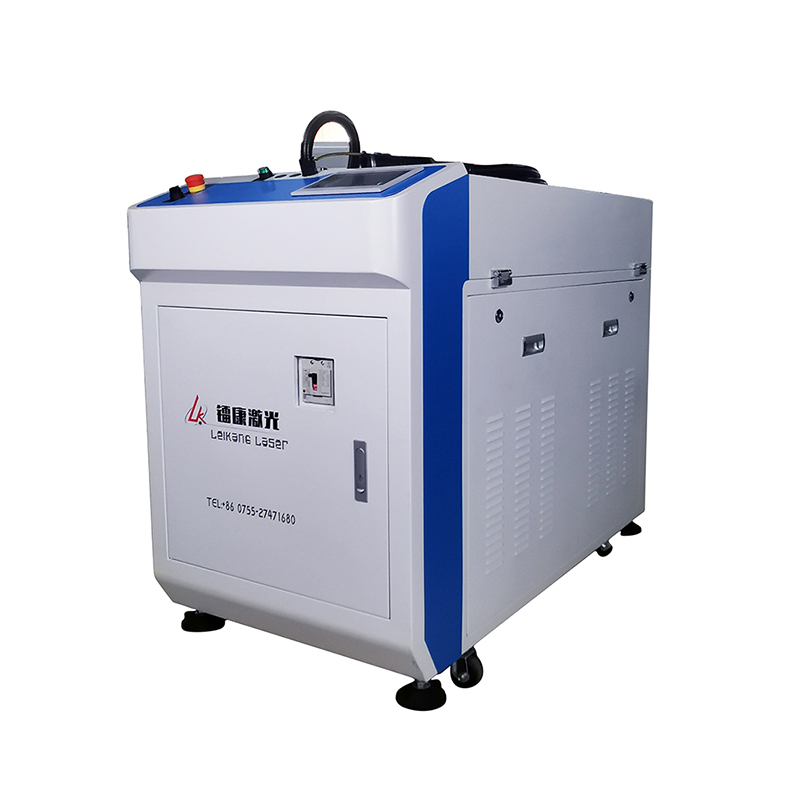

Handheld laser welding machine with smaller laser heat
very flexible for welding some unusual angle suit for advertising channel letter welding
24 Month maintenance
Fast delivery
24 Hour treatment
Feature :
1.handheld welding gunFlexible and convenient hand-held welding with longer welding distance, replace the traditional fixed optical path with a hand-held gun.
Adopted UK imported ceramic condenser cavity, corrosion resistance, high-temperature resistance, long service life.The laser power feedback control system to ensure the stability of laser energy output.
3.Working table
Electric lifting for the working table,fixed focus more quickly.X/Y platform design sports flexible, able to complete a one-time combination welding curves, straight, single-point and other complex processes.
4.machine system
Flexible adjustment of welding spot size on LCD touch screen control system ,its easy to operation
|
Model |
LK-GQH |
|
Max. Laser Power |
200W/300W/400W/500W/600W |
|
Laser Type |
YAG |
|
Laser Wavelength |
1064um |
|
(Pulse-Width (ms) |
0.5ms-20ms |
|
Pulse Energy |
100J/120J |
|
Pulse Frequency |
0-50HZ |
|
Laser Welding Depth |
0.1mm-2mm |
|
Spotlight Cavity Reflector |
Metal Cavity |
|
Sighting Positioning System |
Red light |
|
Aim Operation |
Round Point Cursor |
|
Adjusting range of light spot |
0.6-3.0mm |
|
Cooling system |
External Water cooling |
|
Integrity Power |
5.5kw~8KW |
|
Power Supply |
AC220VAC+-15%/50HZ/25A |
|
Lifetime |
3,000,000 times |
|
Machine size |
Machine:1500*740*1150 chiller :690*510*960mm |
|
Package size |
Machine:1550*800*1290mm Chiller：790*540*1020mm |
|
Machine net weight |
Machine :240 chiller :82kgs |
|
Machine gross weight |
Machine :266kgs chiller:93kgs |
|
1 pcs goggles |
3pcs protective lends |
|
1 pcs water cable |
1 pcs gas cable |
